High Mounted Stoplamp - Convertible — 2016 workshop reference 5781

417-01 Exterior Lighting 2016 Mustang

Removal and Installation Procedure revision date: 08/12/2015

High Mounted Stoplamp - Convertible

Removal

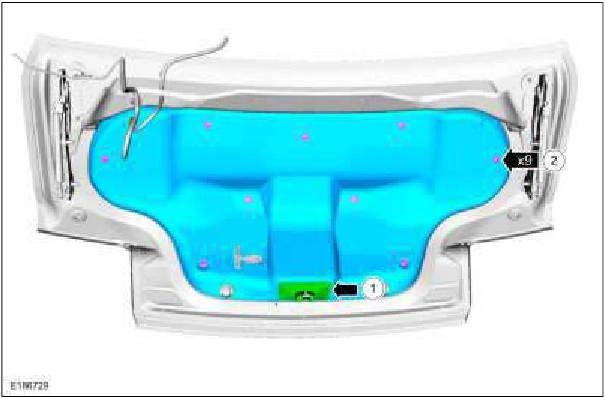

1. Remove the luggage compartment lid interior trim panel.

1. Remove the latch cover.

2. Remove the push pins.

High Mounted Stoplamp - Convertible — original illustration 1, reference 5781Original colors & callouts · Select to enlarge

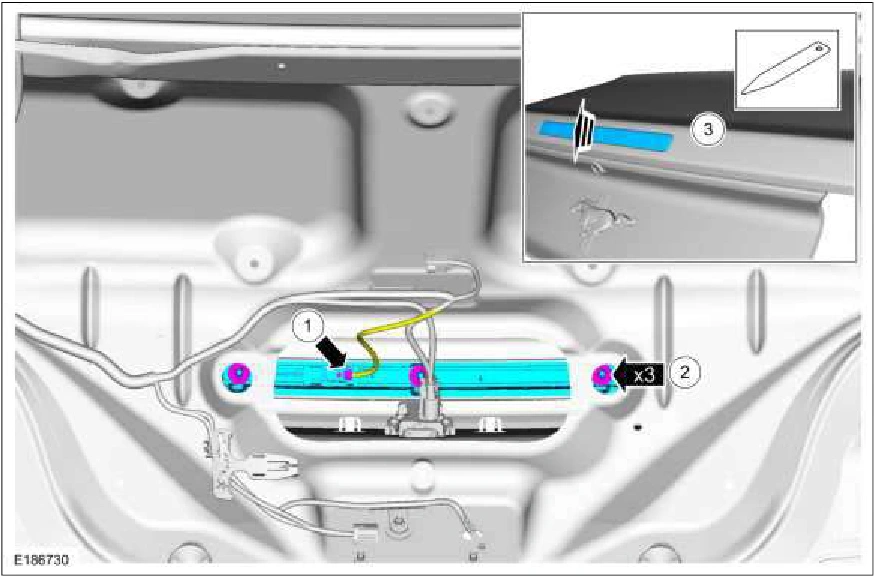

2. Remove the center high mounted stoplamp.

1. Disconnect the electrical connector.

2. Remove the nuts. Torque : 13 lb.in (1.5 Nm)

3. Release the two-sided seal tape.

High Mounted Stoplamp - Convertible — original illustration 2, reference 5781Original colors & callouts · Select to enlarge

Source reference 5781
