Headlamp Bulb — 2016 workshop reference 5778

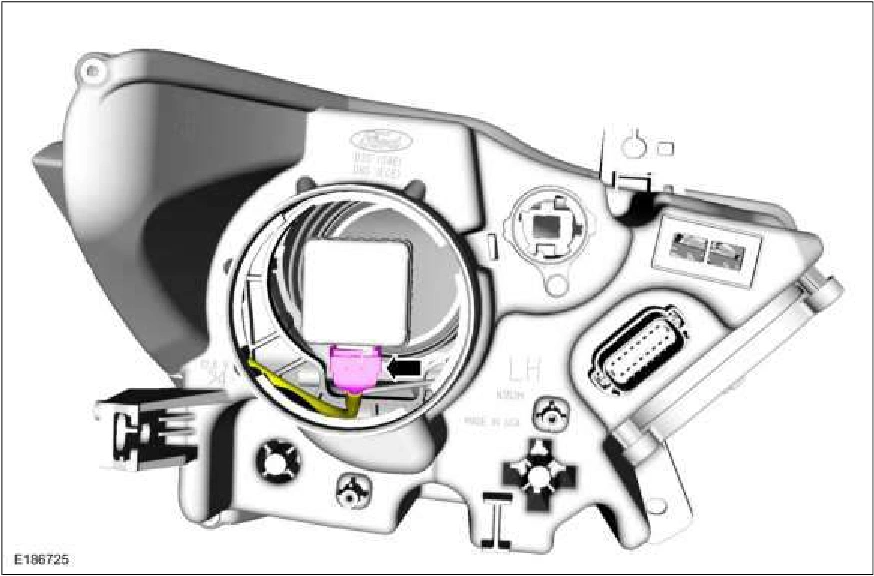

Headlamp Bulb — original illustration 1, reference 5778Original colors & callouts · Select to enlarge

4. Remove the headlamp bulb.

1. Release the spring tabs.

2. Remove the headlamp bulb.

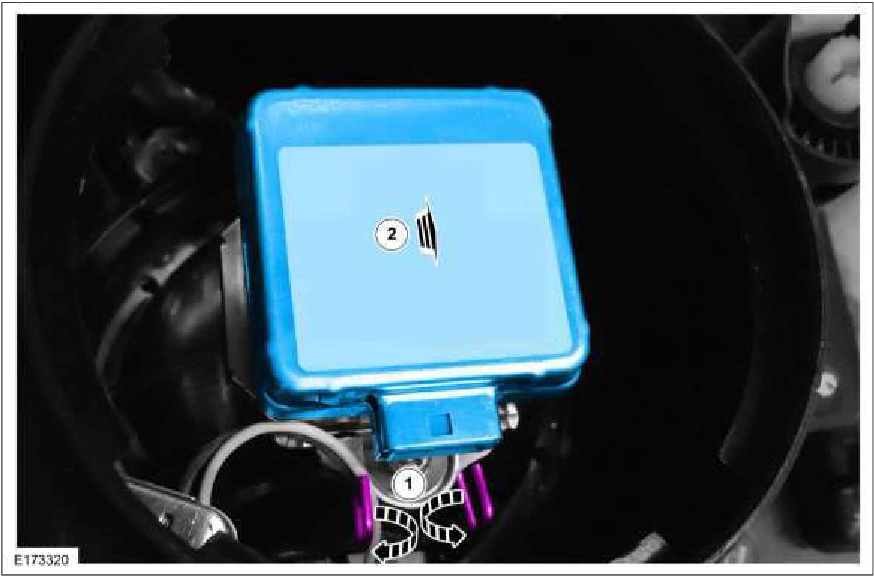

Headlamp Bulb — original illustration 2, reference 5778Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. Adjust the headlamps. Refer to: Headlamp Adjustment (417-01 Exterior Lighting, General Procedures).

Source reference 5778
