Rear Lamp Assembly

417-01 Exterior Lighting 2016 Mustang

Removal and Installation Procedure revision date: 08/12/2015

Base Part Number: 13404

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Coupe shown, convertible similar.

NOTE: RH rear lamp assembly shown, LH rear lamp assembly similar.

All vehicles

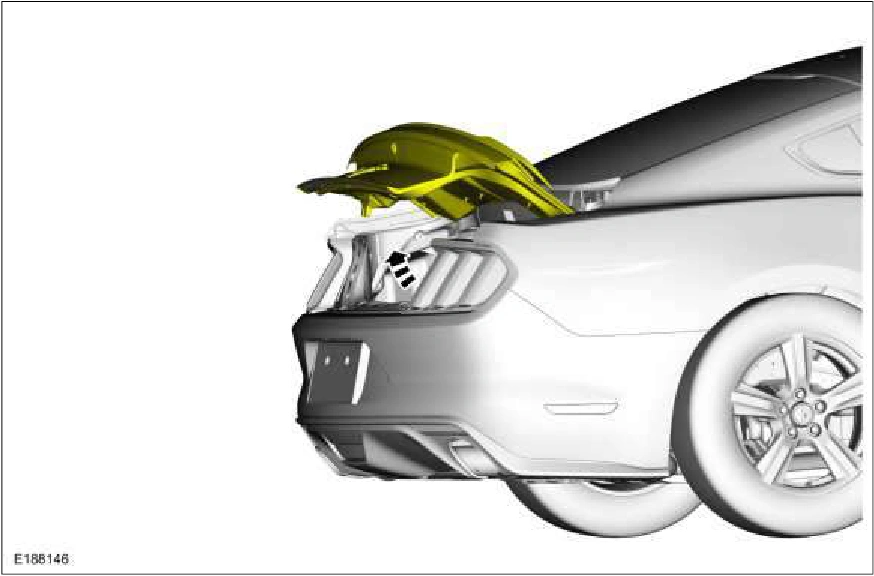

1. Open the luggage compartment lid.

Rear Lamp Assembly — original illustration 1, reference 5795Original colors & callouts · Select to enlarge

2. Remove the spare tire cover.

Source reference 5795
