2016 workshop · Lighting

Rear Lamp Assembly

417-01 Exterior Lighting

2016 MustangReference 5,796 / 6,619HTML edition
← Chapter contentsProcedure contents
Rear Lamp Assembly — original illustration 1, reference 5796Original colors & callouts · Select to enlarge

RH rear lamp assembly

3. If equipped, remove the subwoofer and amplifier unit. Refer to: Subwoofer and Amplifier Unit (415-00B Information and Entertainment System - General Information - Vehicles With: Touchscreen Display, Removal and Installation).

All vehicles

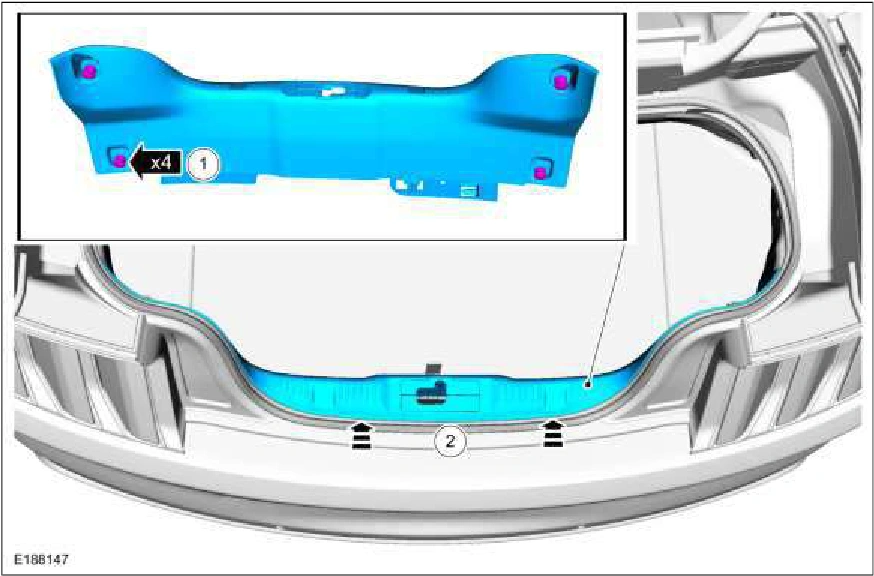

4. Remove the luggage compartment scuff plate.

1. Remove the thumb nut type retainers.

2. Remove the luggage compartment scuff plate.

Rear Lamp Assembly — original illustration 2, reference 5796Original colors & callouts · Select to enlarge

5.
