Rear Lamp Assembly — 2016 workshop reference 5797

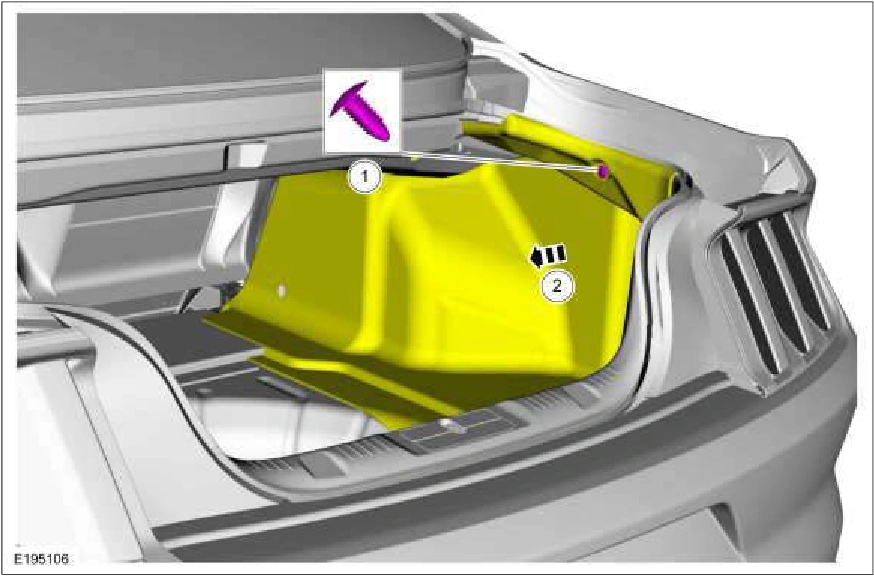

Position the luggage compartment side trim panel aside.

1. Remove the pin-type retainer.

2. Position aside the RH or LH luggage compartment side trim panel.

Rear Lamp Assembly — original illustration 1, reference 5797Original colors & callouts · Select to enlarge

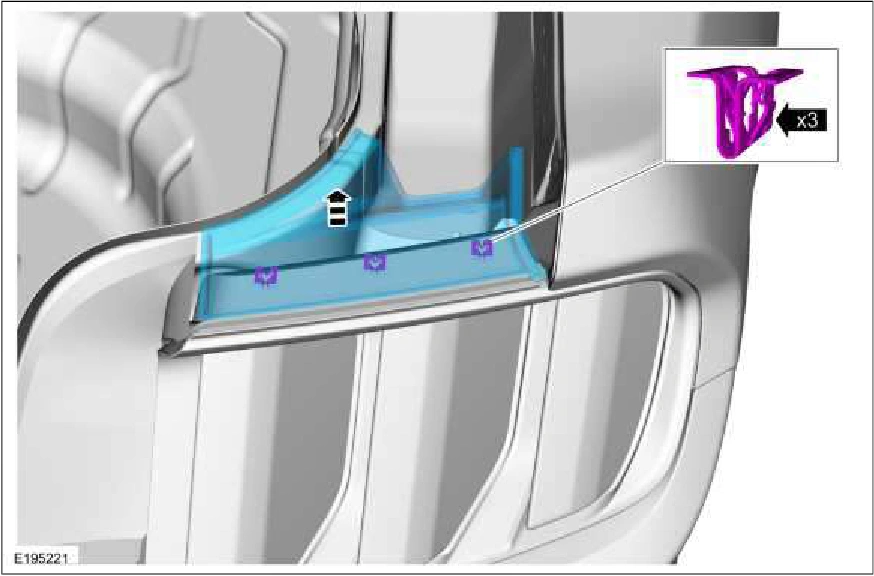

6. Release the clips and remove the rear lamp assembly shield.

Rear Lamp Assembly — original illustration 2, reference 5797Original colors & callouts · Select to enlarge

7. Remove the rear lamp assembly.

1. Disconnect the rear lamp assembly electrical connector.

2. Remove the nuts. Torque : 55 lb.in (6.2 Nm)

Source reference 5797
