Reversing Lamp

417-01 Exterior Lighting 2016 Mustang

Removal and Installation Procedure revision date: 08/12/2015

Base Part Number: 13466

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Raise the vehicle on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

2. Disconnect the reversing lamp electrical connector.

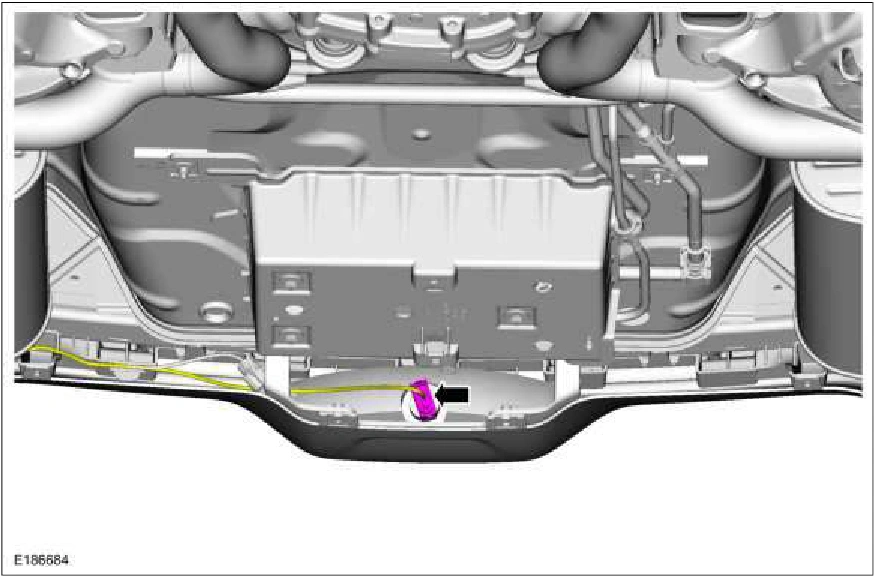

Reversing Lamp — original illustration 1, reference 5799Original colors & callouts · Select to enlarge

3. Remove the rear bumper cover. Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).

4. Remove the screws and the reversing lamp. Torque : 15 lb.in (1.7 Nm)

Source reference 5799
