Reversing Lamp - Vehicles With: SVT Performance Package

417-01 Exterior Lighting

2016 MustangReference 5,802 / 6,619HTML edition

← Chapter contents Procedure contents

Reversing Lamp - Vehicles With: SVT Performance Package — original illustration 1, reference 5802Original colors & callouts · Select to enlarge

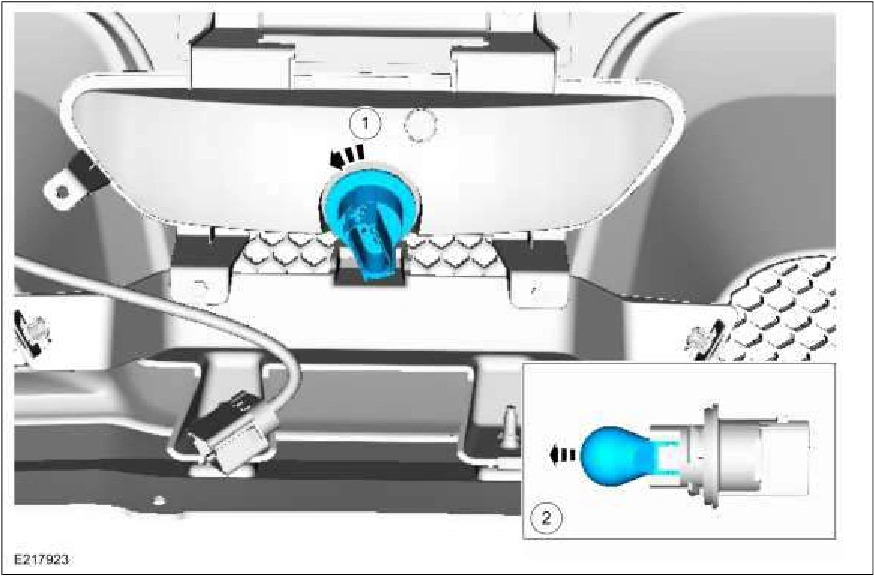

Reversing lamp assembly

4. Disconnect the rear bumper cover wiring harness electrical connectors.

Reversing Lamp - Vehicles With: SVT Performance Package — original illustration 2, reference 5802Original colors & callouts · Select to enlarge

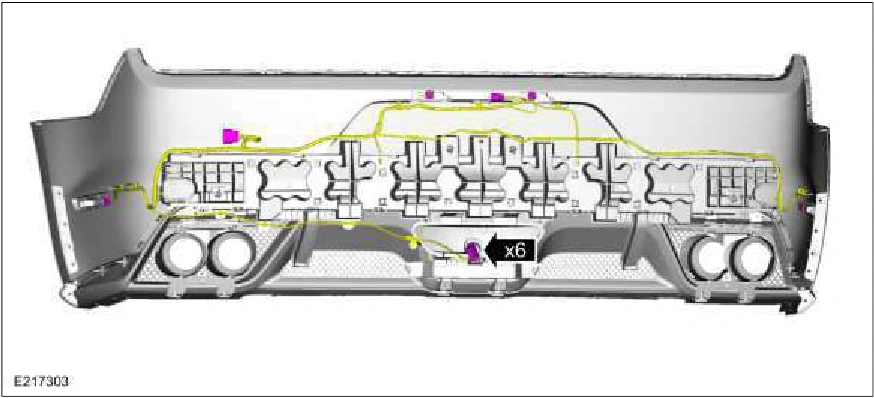

5. Release the rear bumper cover wiring harness guides and remove the wiring harness.
