Reversing Lamp Switch

417-01 Exterior Lighting 2016 Mustang

Removal and Installation Procedure revision date: 08/12/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Raise the vehicle on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

2. Disconnect the reversing lamp switch and separate the connector retainer.

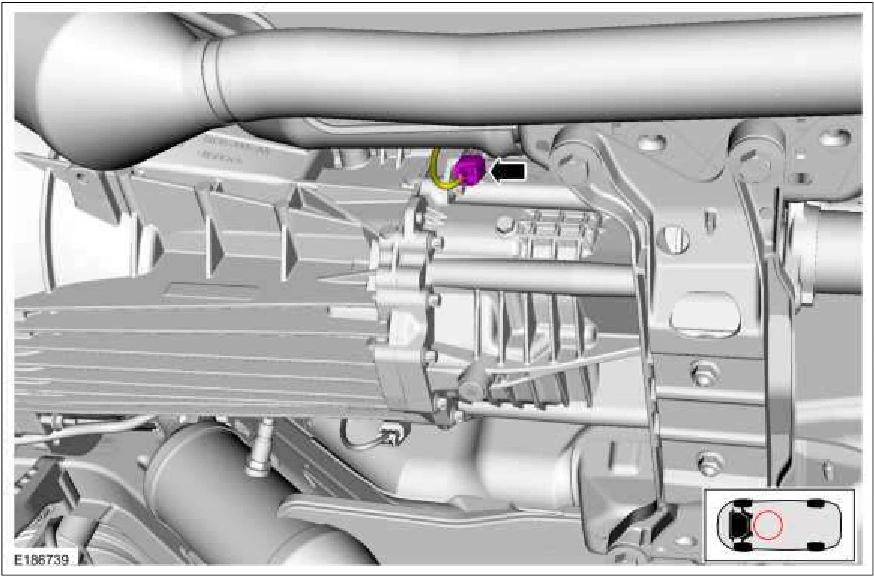

Reversing Lamp Switch — original illustration 1, reference 5805Original colors & callouts · Select to enlarge

3. Remove the reversing lamp switch. Torque : 177 lb.in (20 Nm)

Source reference 5805
