417-01 Exterior Lighting 2016 Mustang

Removal and Installation Procedure revision date: 08/12/2015

Reversing Lamp Switch - Vehicles With: SVT Performance Package

Removal

1. Raise the vehicle on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

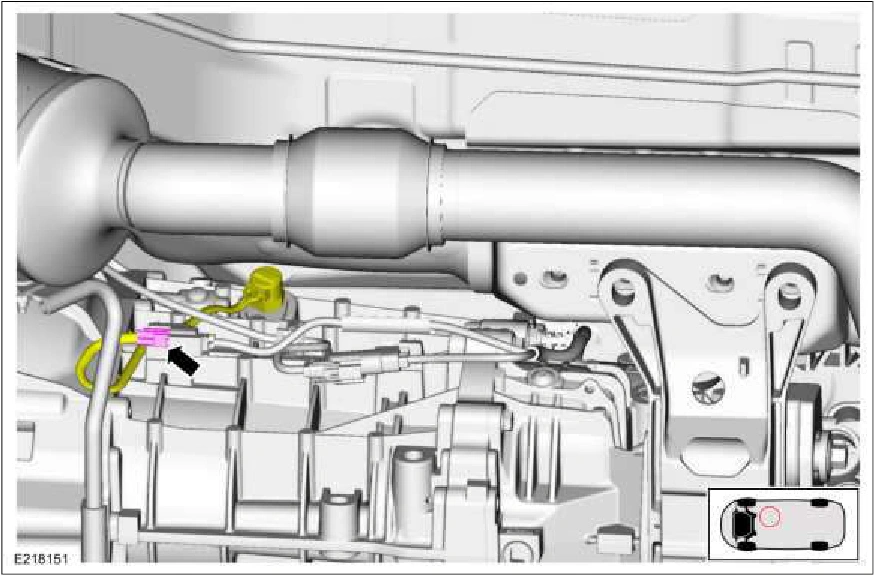

2. Disconnect the reversing lamp switch electrical connector and separate the connector from the wiring harness guide.

Reversing Lamp Switch - Vehicles With: SVT Performance Package — original illustration 1, reference 5807Original colors & callouts · Select to enlarge

3. Remove the reversing lamp switch. Torque : 20 lb.ft (27 Nm)
