Side Lamp Bulb

417-01 Exterior Lighting 2016 Mustang

Removal and Installation Procedure revision date: 08/12/2015

Base Part Number: 13466

Removal

1. Raise the vehicle on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

2. Disconnect the side lamp bulb electrical connector.

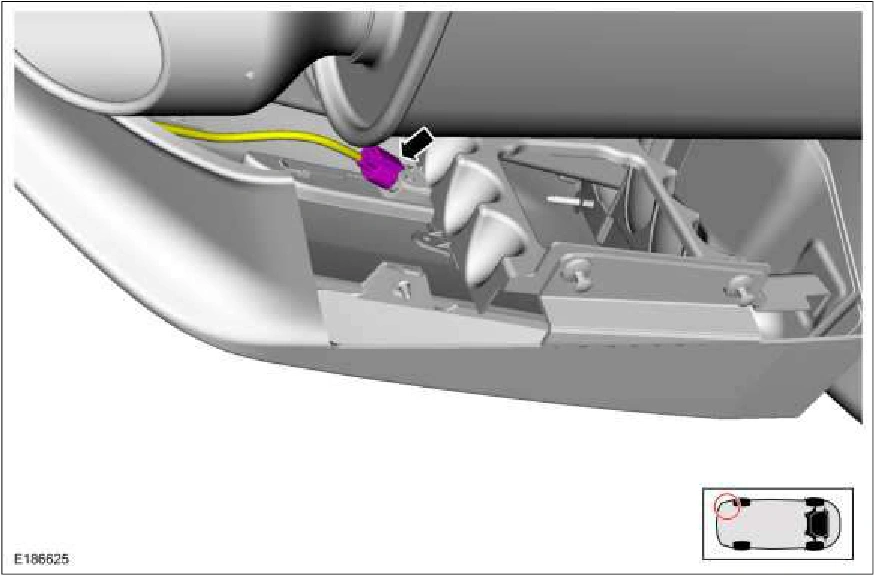

Side Lamp Bulb — original illustration 1, reference 5809Original colors & callouts · Select to enlarge

3. Remove the bulb fron the bulb holder. Turn the bulb holder counter clockwise and remove the bulb holder.

Source reference 5809
