417-01 Exterior Lighting 2016 Mustang

Removal and Installation Procedure revision date: 08/22/2014

Stoplamp Switch

Base Part Number: 9G854

Removal

NOTICE: Do not press or pull on brake pedal when installing or removing the stoplamp switch otherwise misadjustment or damage to the stoplamp switch can occur

1. Remove the stoplamp switch.

1. Disconnect the stoplamp switch electrical connector.

2. Turn the stoplamp switch clockwise.

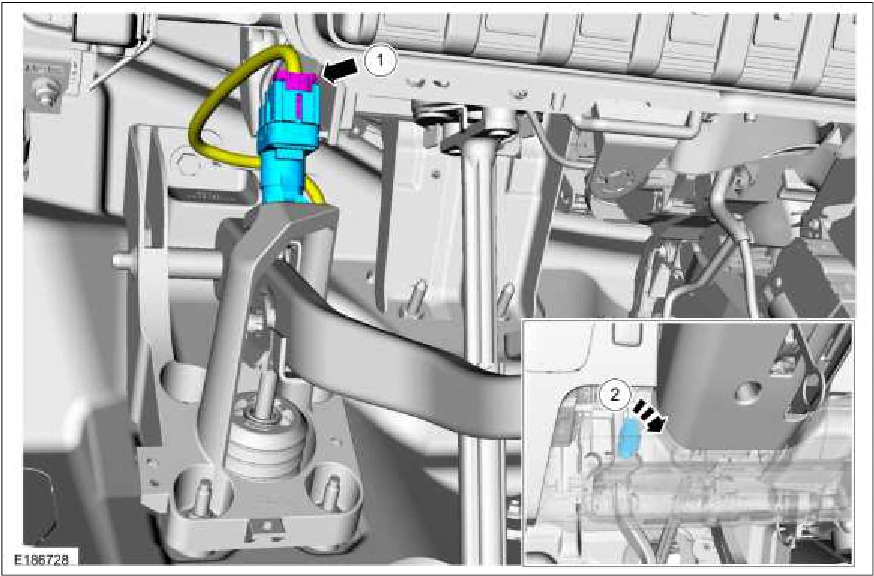

Stoplamp Switch — original illustration 1, reference 5812Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.
