417-01 Exterior Lighting 2016 Mustang

Removal and Installation Procedure revision date: 08/12/2015

Side Turn Signal Lamp

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH is shown, RH is similar.

All vehicles

1. Raise the vehicle on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

Vehicles equipped with side obstacle detection

2. Remove the rear bumper cover. Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).

All vehicles

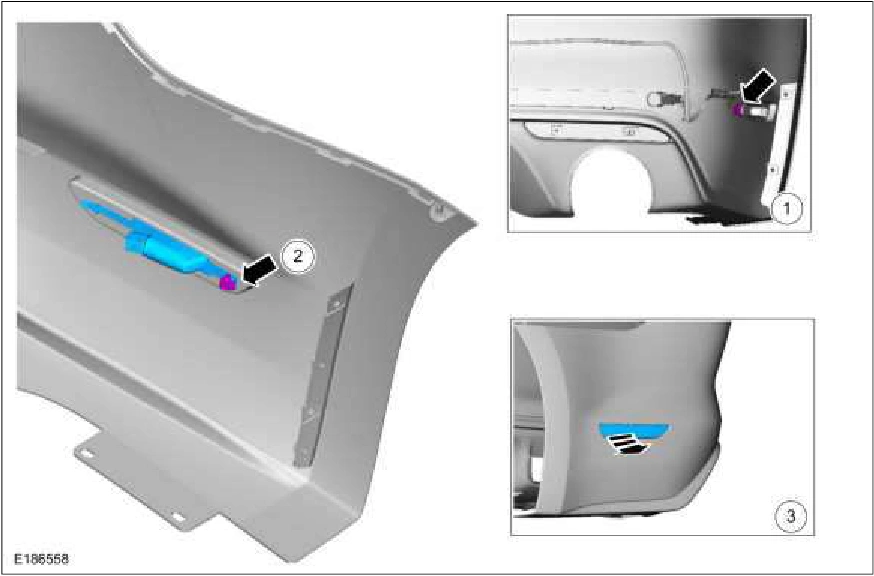

3. Remove the side turn signal.

1. Disconnect the electrical connector.

2. Release the tab.

3. Remove the side turn signal.

Side Turn Signal Lamp — original illustration 1, reference 5811Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.
