Reversing Lamp - Vehicles With: SVT Performance Package — 2016 workshop reference 5801

417-01 Exterior Lighting 2016 Mustang

Removal and Installation Procedure revision date: 08/12/2015

Reversing Lamp - Vehicles With: SVT Performance Package

Base Part Number: 13466

Removal

All components

1. Remove the rear bumper cover. Refer to: Rear Bumper Cover - Vehicles With: SVT Performance Package (501-19 Bumpers, Removal and Installation).

Reversing lamp bulb

2. Disconnect the reversing lamp electrical connector.

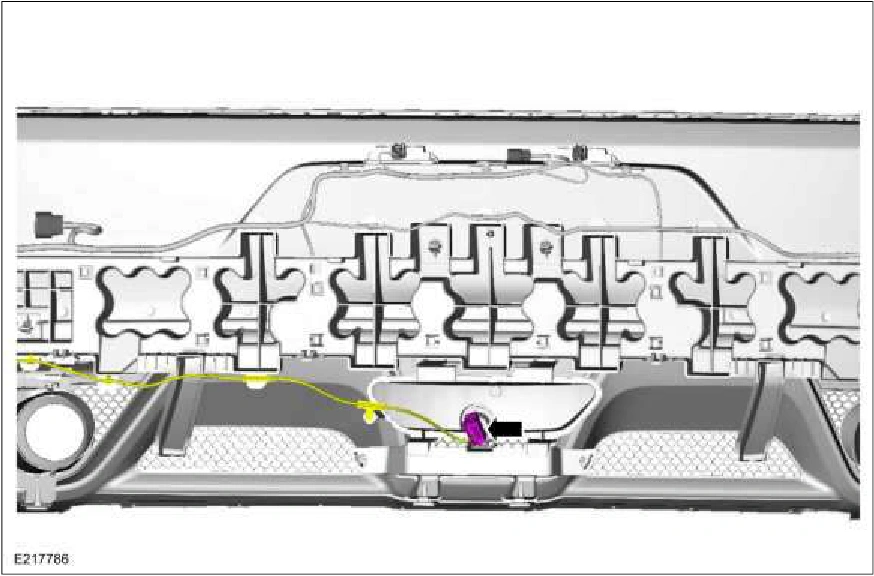

Reversing Lamp - Vehicles With: SVT Performance Package — original illustration 1, reference 5801Original colors & callouts · Select to enlarge

3. Remove the reversing lamp bulb.

1. Disconnect the reversing lamp electrical connector.

2. Separate the reversing lamp bulb from the bulb holder.

Source reference 5801
