419-01A Perimeter Anti-Theft Alarm 2016 Mustang

Removal and Installation Procedure revision date: 08/11/2015

Intrusion Sensor

Removal

1. Remove the overhead console. Refer to: Overhead Console (501-12 Instrument Panel and Console, Removal and Installation).

Step 2

1. Remove the screws.

2. Disconnect the electrical connector and remove the bracket and sensor assembly.

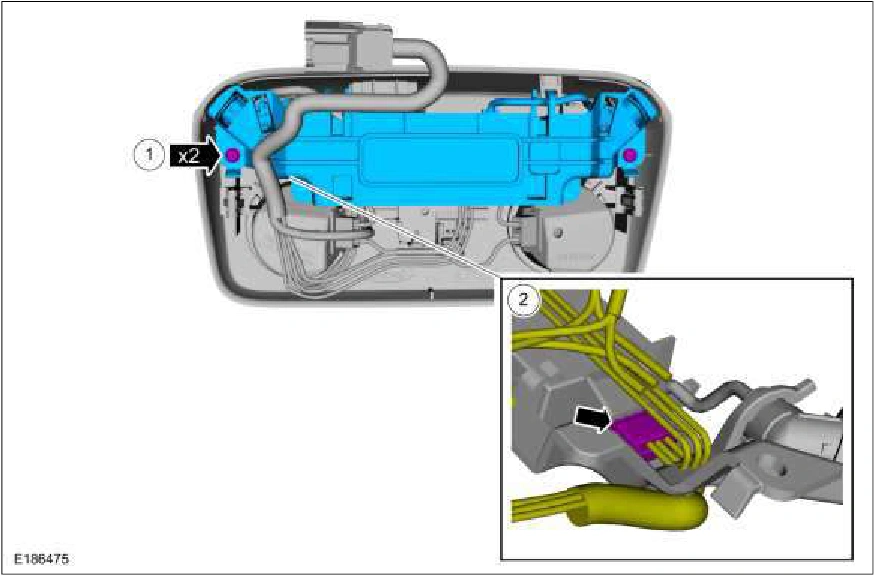

Intrusion Sensor — original illustration 1, reference 6004Original colors & callouts · Select to enlarge

Step 3

1. Release the clips and position the sensors aside.

2. Release the clips.

3. Remove the intrusion sensor.

Source reference 6004
