Anti-Theft Alarm Horn — 2016 workshop reference 6002

3. If equipped, remove the subwoofer and amplifier unit. Refer to: Subwoofer and Amplifier Unit (415-00B Information and Entertainment System - General Information - Vehicles With: Touchscreen Display, Removal and Installation).

Step 4

1. Remove the pin-type retainers.

2. Position aside the RH luggage compartment side trim panel.

Anti-Theft Alarm Horn — original illustration 1, reference 6002Original colors & callouts · Select to enlarge

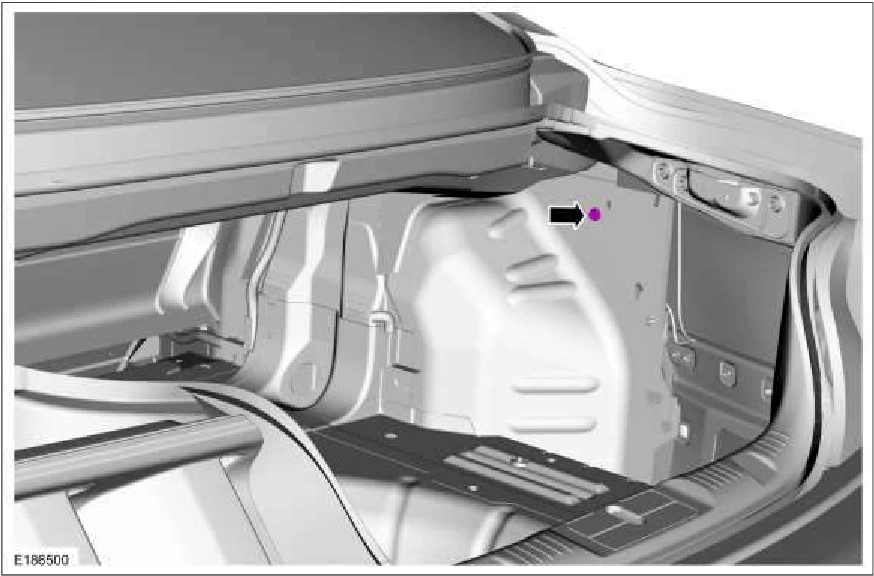

5. Remove the anti-theft horn bolt.

Anti-Theft Alarm Horn — original illustration 2, reference 6002Original colors & callouts · Select to enlarge

Step 6

1. Disconnect the electrical connector.

2. Remove the anti-theft horn.

Source reference 6002
