Cruise Control Radar Alignment

419-03B Cruise Control - Vehicles With: Adaptive Cruise Control 2016 Mustang

General Procedures Procedure revision date: 08/6/2015

Activation

Vertical Alignment

NOTE: In order to align the CCM, the front bumper cover must be removed to access the sensor and the vehicle must be in a wheel alignment bay station so that the vehicle is level.

NOTE: Damage to the CCM bracket may affect correct alignment. When aligning the CCM, inspect the CCM bracket for damage and repair as necessary before carrying out the alignment procedure.

1. Remove the front bumper cover. Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).

2. Place the vehicle on a wheel alignment bay station.

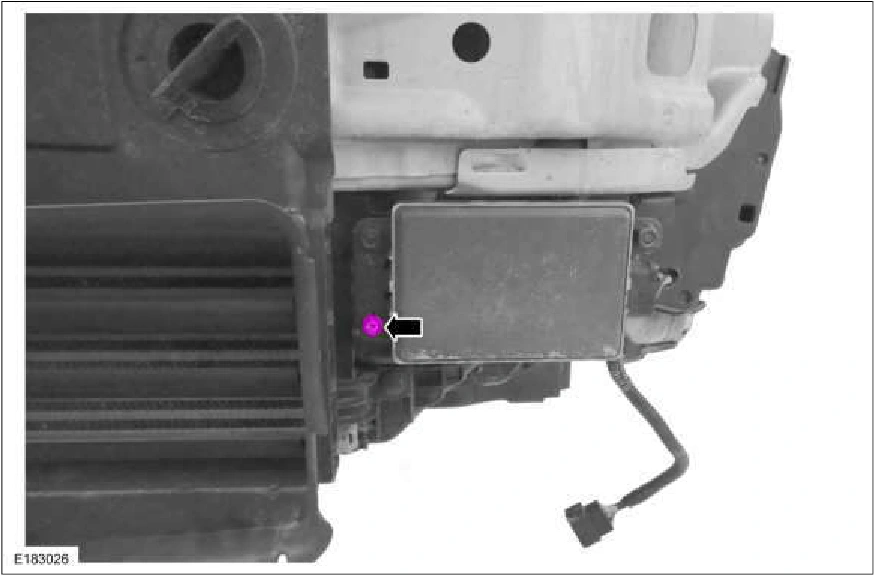

3. Locate the CCM alignment screw.

Cruise Control Radar Alignment — original illustration 1, reference 6119Original colors & callouts · Select to enlarge

4. Place a combination square level on the face of the CCM and check the alignment.

Source reference 6119
