Cruise Control Radar Alignment — 2016 workshop reference 6120

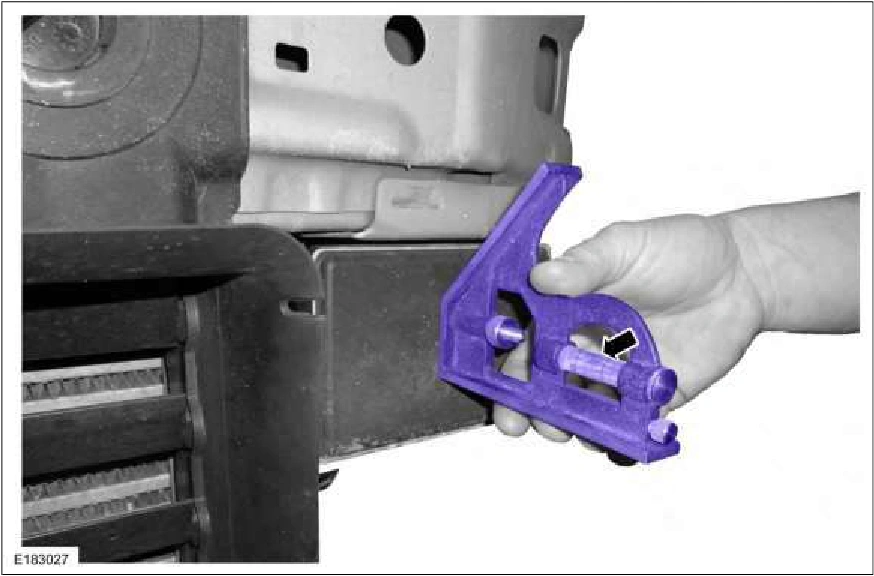

Cruise Control Radar Alignment — original illustration 1, reference 6120Original colors & callouts · Select to enlarge

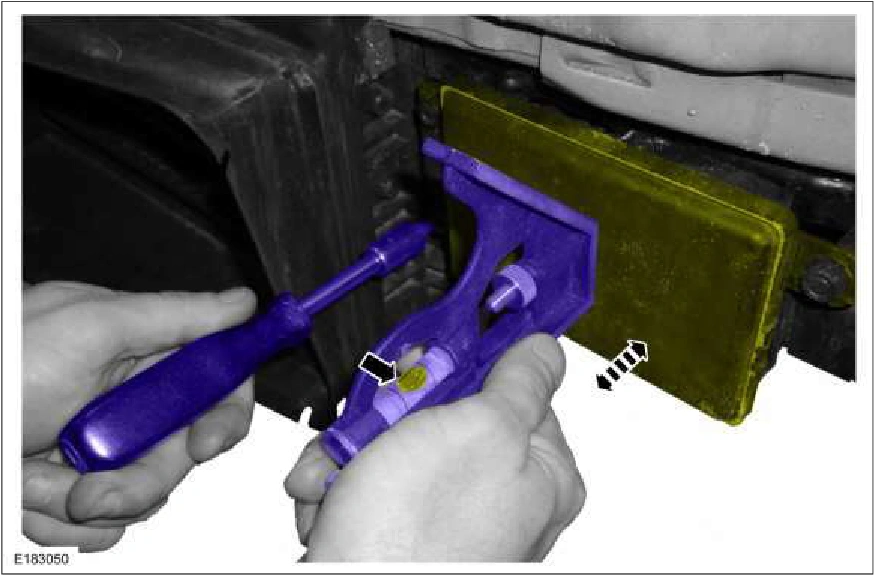

5. Keeping the combination square level on the face of the CCM, adjust the pitch by using an E20 Torx® bit to adjust the screw until the CCM is vertical and level.

Cruise Control Radar Alignment — original illustration 2, reference 6120Original colors & callouts · Select to enlarge

6. NOTE: Prior to installing the front bumper cover, clean and remove any debris on the front or back of the cover.

Install the front bumper cover.

Horizontal Alignment

NOTE: The horizontal alignment for the CCM is a software calibration. No manual adjustment is needed for this procedure. The scan tool calibrates the CCM through the CCM procedure in programmable parameters.

7. NOTICE: The vehicle's engine must be running during the horizontal alignment procedure. Failure
