Cruise Control Module (CCM)

419-03B Cruise Control - Vehicles With: Adaptive Cruise Control 2016 Mustang

Removal and Installation Procedure revision date: 08/12/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the front bumper cover. Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).

2. NOTE: Gently pry the CCM from the retaining studs.

Disconnect the electrical connector and remove the CCM from the bracket.

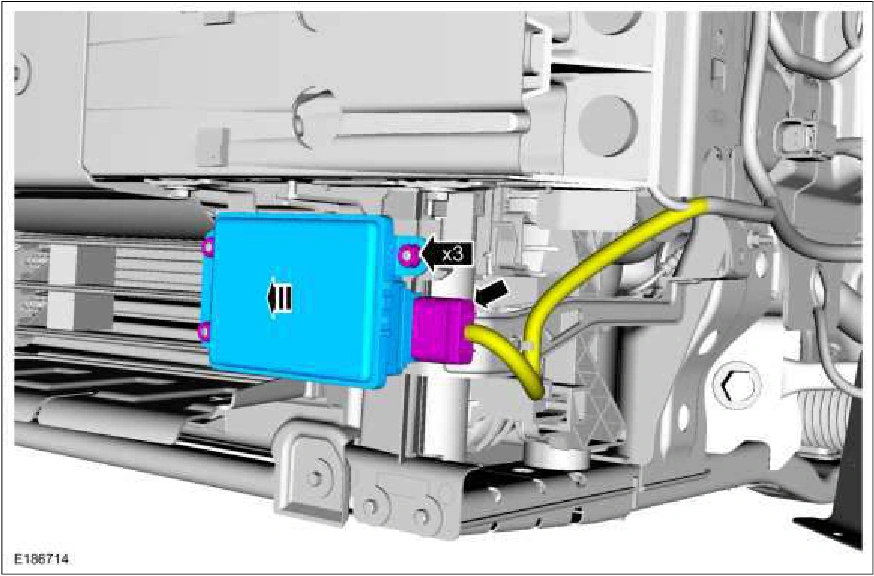

Cruise Control Module (CCM) — original illustration 1, reference 6123Original colors & callouts · Select to enlarge

3. . Inspect the CCM grommets for damage. Replace any damaged grommets

Source reference 6123
