Cruise Control Module (CCM) — 2016 workshop reference 6124

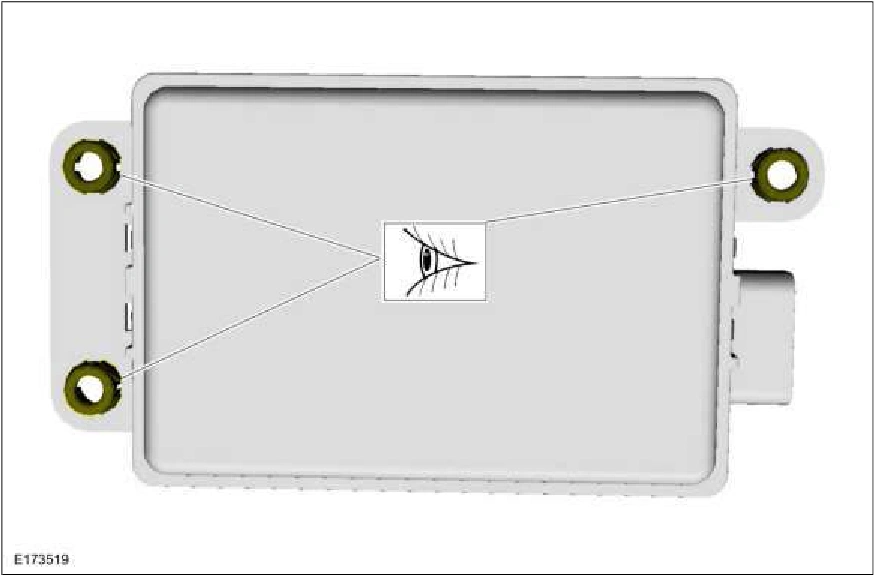

Cruise Control Module (CCM) — original illustration 1, reference 6124Original colors & callouts · Select to enlarge

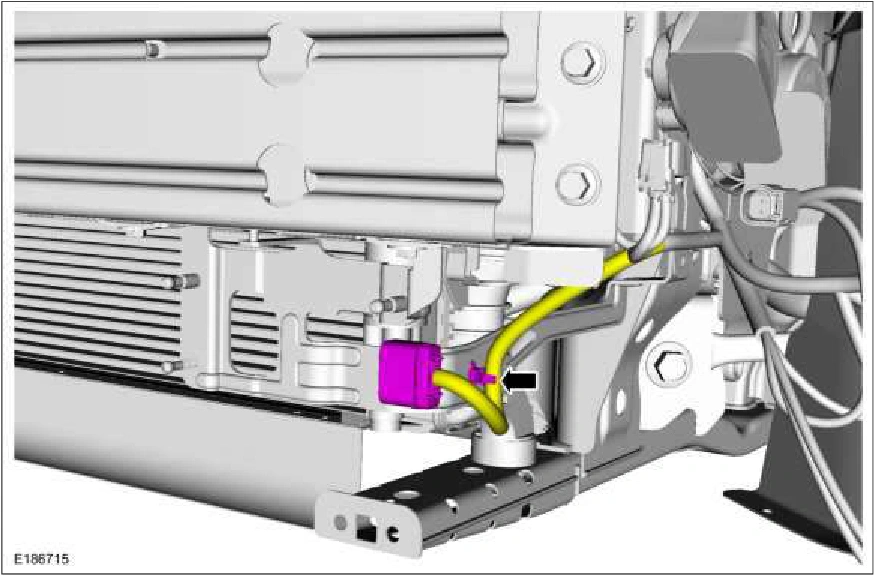

4. If bracket removal is required, separate the wiring harness guide.

Cruise Control Module (CCM) — original illustration 2, reference 6124Original colors & callouts · Select to enlarge

5. Remove the CCM bracket.

1. Remove the CCM bracket bolt. Torque : 80 lb.in (9 Nm)

2. Remove the CCM bracket bolt. Torque : 80 lb.in (9 Nm)

3. Remove the CCM bracket nut. Torque : 80 lb.in (9 Nm)

4. Slide the CCM bracket left and then down.

Source reference 6124
