Cooling Fan Motor and Shroud

303-03C Engine Cooling - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 2016 Mustang (308kW/418PS)

Procedure revision date:

Removal and Installation

01/15/2015

Base Part Number: 8C607

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the air cleaner. Refer to: Air Cleaner (303-12C Intake Air Distribution and Filtering - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

2. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe (303-12C Intake Air Distribution and Filtering - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

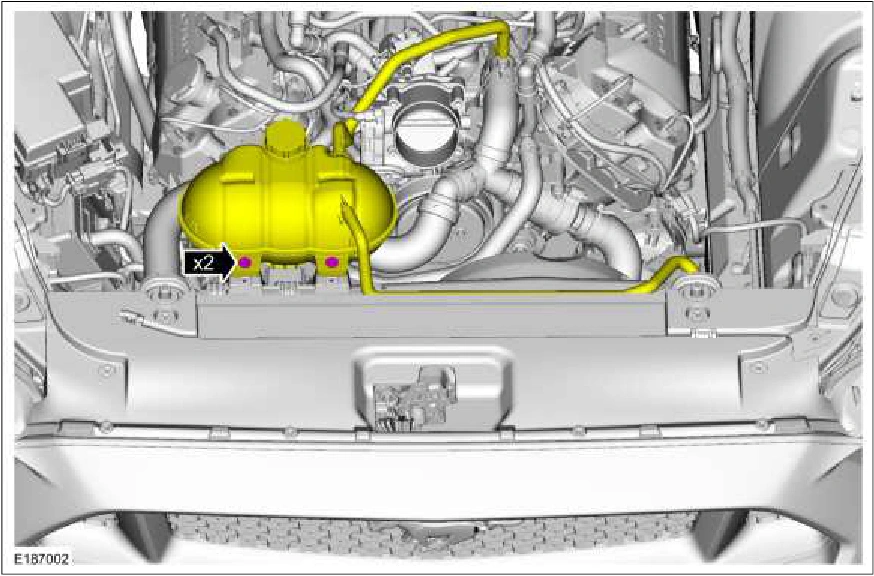

3. Remove the bolts and position the degas bottle aside. Torque : 80 lb.in (9 Nm)

303-01C Engine Cooling - 5.0L — original illustration 1, reference 613Original colors & callouts · Select to enlarge

4. Disconnect the cooling fan electrical connectors and detach the wiring harness retainers.

Source reference 613
