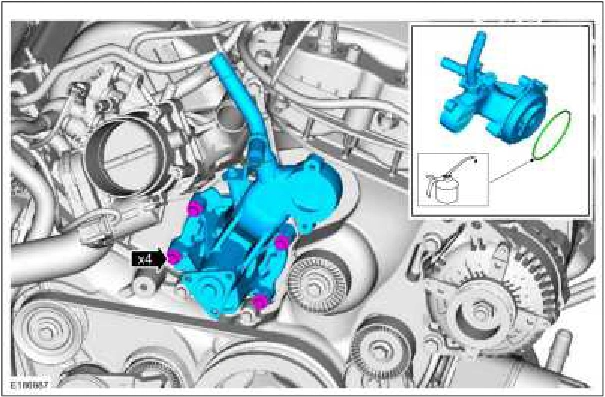

303-01C Engine Cooling - 5.0L — original illustration 1, reference 611Original colors & callouts · Select to enlarge

4. Connect the lower degas bottle hose to the heater outlet tube and position the clamp. Use the General Equipment: Hose Clamp Remover/Installer Connect the heater outlet hose to the heater outlet tube.

303-01C Engine Cooling - 5.0L — original illustration 2, reference 611Original colors & callouts · Select to enlarge

5. NOTE: Only tighten the bolts finger tight at this stage.

Position the coolant pump pulley and install the bolts finger tight.
