303-01C Engine Cooling - 5.0L — 2016 workshop reference 608

303-01C Engine Cooling - 5.0L — original illustration 1, reference 608Original colors & callouts · Select to enlarge

8. Disconnect the heater outlet hose from the heater outlet tube. Release the clamp and disconnect the lower degas bottle hose from the heater outlet tube. Use the General Equipment: Hose Clamp Remover/Installer

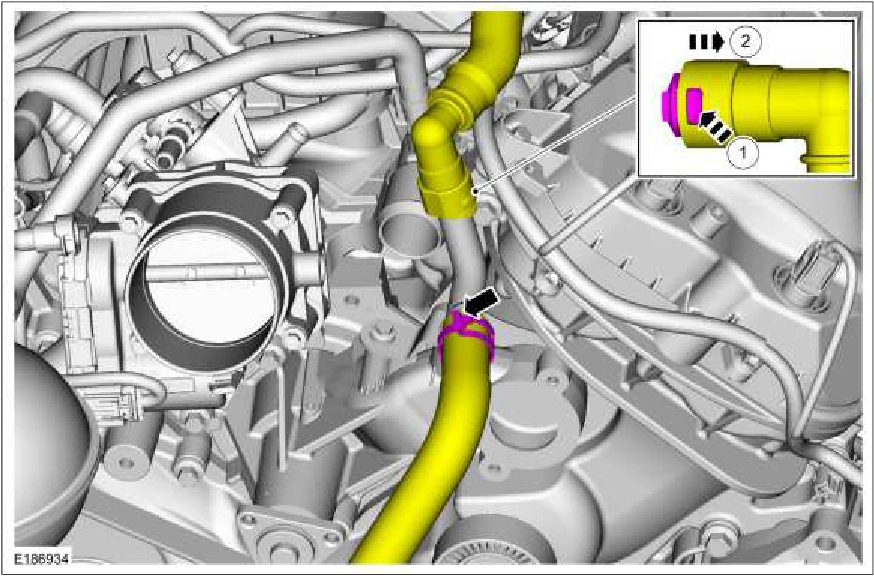

303-01C Engine Cooling - 5.0L — original illustration 2, reference 608Original colors & callouts · Select to enlarge

9. Remove the bolts and the coolant pump. Remove and discard the O-ring seal.

Source reference 608
