Block Heater

303-03C Engine Cooling - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 2016 Mustang (308kW/418PS)

Procedure revision date:

Removal and Installation

01/15/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Drain the cooling system. Refer to: Cooling System Draining and Vacuum Filling (303-03C Engine Cooling - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).

2. NOTE: Make sure the block heater wiring is routed and secured away from rotating or hot components.

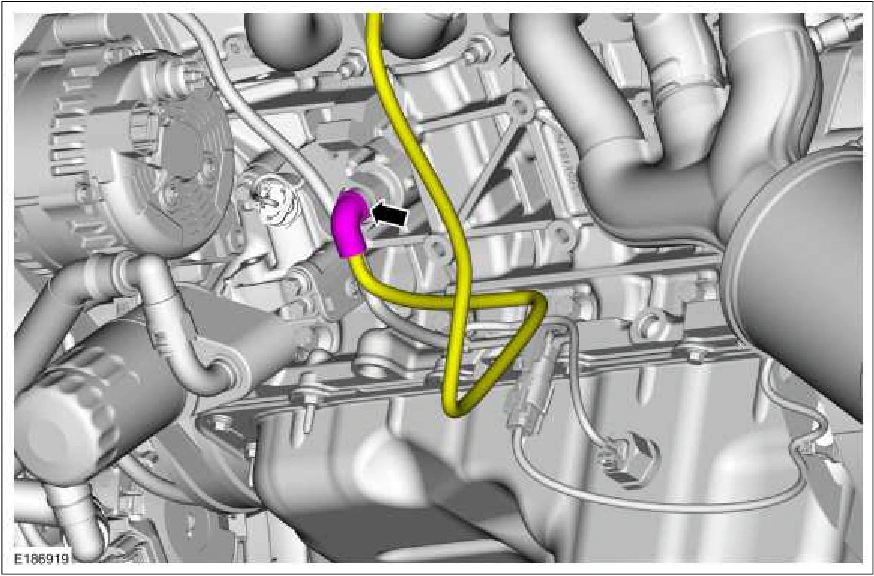

Disconnect the block heater electrical connector.

303-01C Engine Cooling - 5.0L — original illustration 1, reference 605Original colors & callouts · Select to enlarge

3. Remove the block heater. Torque : 30 lb.ft (40 Nm)

Source reference 605
