419-10 Multifunction Electronic Modules 2016 Mustang

Removal and Installation Procedure revision date: 05/11/2015

Radio Transceiver Module (RTM)

Removal

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the RTM following the on-screen instructions.

Coupe

2. Remove the parcel shelf. Refer to: Parcel Shelf - Coupe (501-05 Interior Trim and Ornamentation, Removal and Installation).

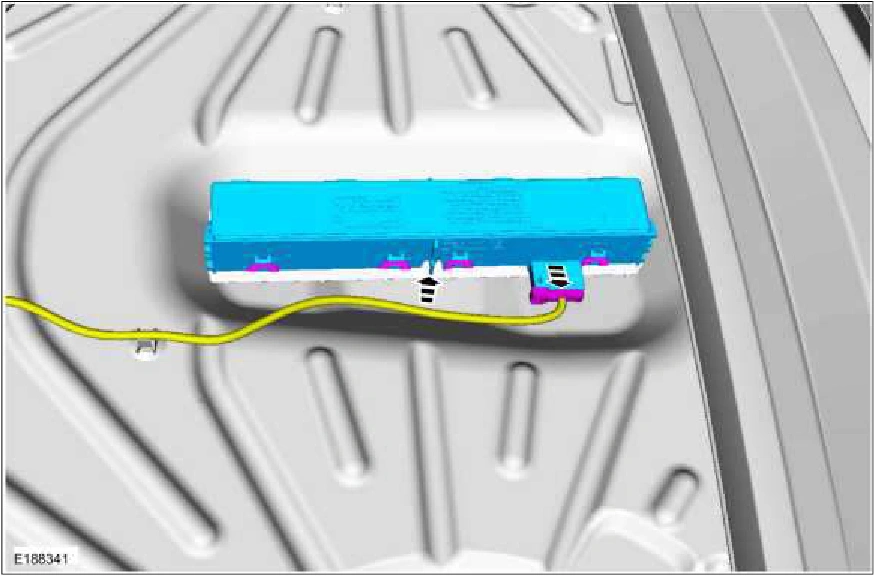

3. Release the tabs and remove the RTM. Disconnect the electrical connectors.

Radio Transceiver Module (RTM) — original illustration 1, reference 6218Original colors & callouts · Select to enlarge

Convertible

4. Remove the loadspace trim panel. Refer to: Loadspace Trim Panel - Convertible (501-05 Interior Trim and Ornamentation, Removal and Installation).

5. Release the tabs and remove the RTM. Disconnect the electrical connectors.
