Driver Door Module (DDM)

419-10 Multifunction Electronic Modules 2016 Mustang

Removal and Installation Procedure revision date: 05/11/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the DDM following the on-screen instructions.

2. Remove the Front door trim panel. Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

3. Remove the bolts and the DDM. Disconnect the electrical connectors. Torque : 44 lb.in (5 Nm)

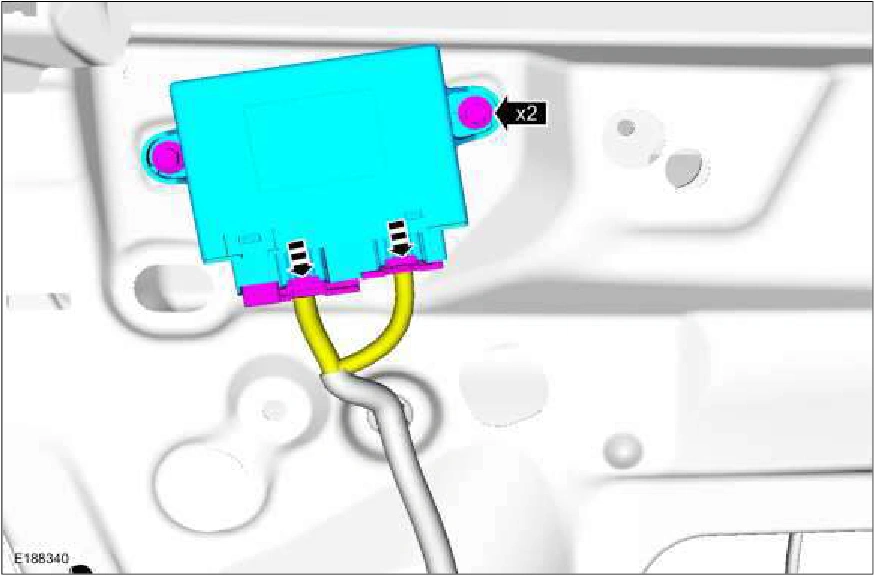

Driver Door Module (DDM) — original illustration 1, reference 6216Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure

2. Using a diagnostic scan tool, complete the PMI process for the DDM following the on-screen instructions.

Source reference 6216
