419-10 Multifunction Electronic Modules 2016 Mustang

Removal and Installation Procedure revision date: 05/11/2015

Body Control Module B (BCMB)

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the BCM-B (Body Control Module-B) following the on-screen instructions.

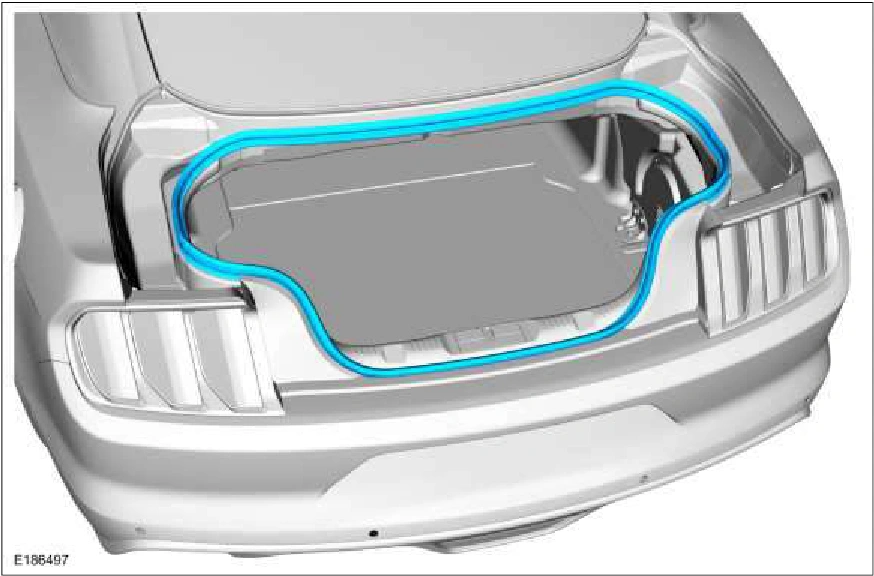

2. Remove the luggage compartment weatherstrip.

Body Control Module B (BCMB) — original illustration 1, reference 6213Original colors & callouts · Select to enlarge

3. Remove the spare tire cover.
