Body Control Module (BCM) — 2016 workshop reference 6210

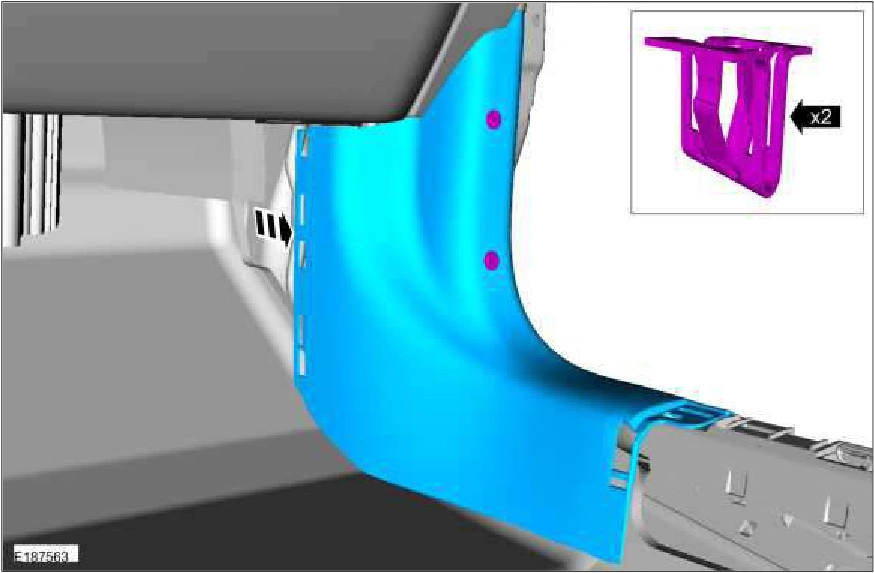

Body Control Module (BCM) — original illustration 1, reference 6210Original colors & callouts · Select to enlarge

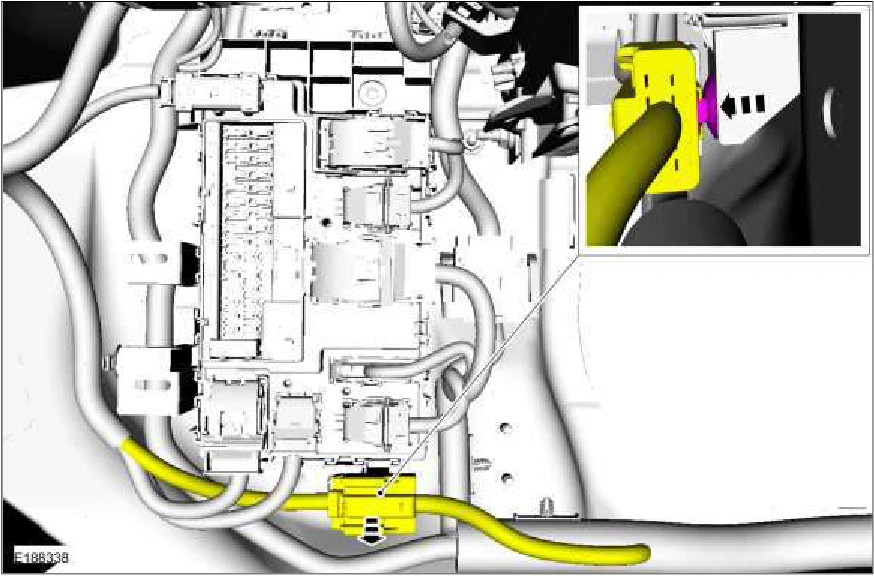

5. Release the harness retainer and position the harness aside.

Body Control Module (BCM) — original illustration 2, reference 6210Original colors & callouts · Select to enlarge

6. Remove the nut and the BCM. Disconnect the electrical connectors. Torque : 71 lb.in (8 Nm)

Source reference 6210
