Installation
1. NOTE: If installing a new BCM, the ignition cannot be turned on until a parameter reset is performed and 2 keys are programmed to the vehicle. The BCM still communicates with the diagnostic scan tool with the ignition off. Use the previous diagnostic scan tool session or start a diagnostic scan tool session using the PCM part number or tear tag number located on the PCM.

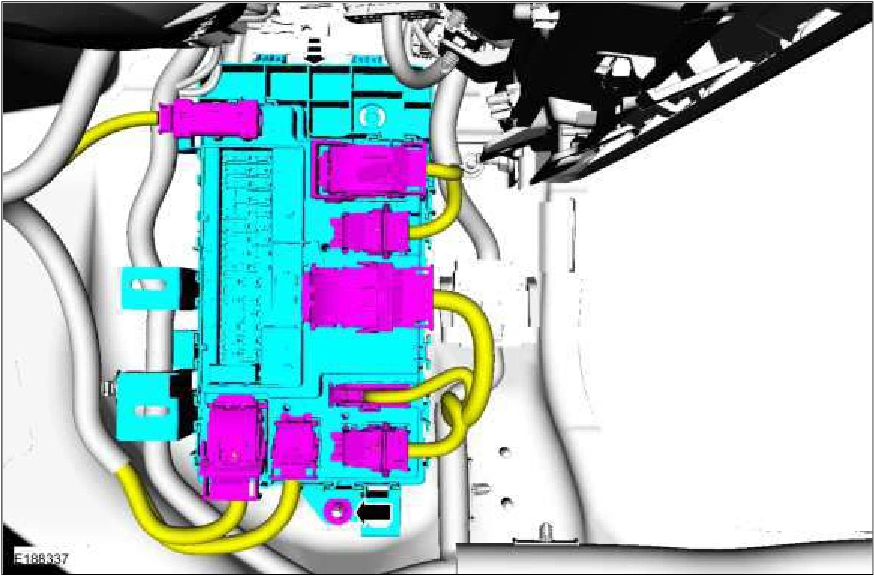

To install, reverse the removal procedure.
NOTE: Carry out the remaining steps only if installing a new BCM.
2. NOTE: A diagnostic scan tool should not be used to program keys for this specific step.
Program the keys.
Place the first key in the backup starting location. Refer to: Passive Anti-Theft System (PATS) - Component Location (419-01B Passive Anti-Theft System (PATS), Description and Operation). Press the START/STOP button and wait approximately 6 seconds. Press the START/STOP button and remove the first key. Place the second key in the backup starting location. Press the START/STOP button.
3. Carry out the parameter reset. Refer to: Anti-Theft Security Access (419-01B Passive Anti-Theft System (PATS), General Procedures).
4. Using a diagnostic scan tool, complete the PMI process for the BCM following the on-screen instructions.
5. Using a diagnostic scan tool, carry out the Configuration Engine Immobilizer (CEI) configuration following the on-screen instructions (Toolbox > Body > Service Functions > CEI Lock Configuration).
6. Using a diagnostic scan tool, carry out the battery monitor sensor reset following the on-screen instructions (Toolbox > Body > BMS Reset).
7. If equipped with video rear parking aid, using a diagnostic scan tool, carry out the new module initialization following the on-screen instructions (Toolbox > Electrical > Service Functions > LIN New Module Initialization).
8. NOTE: This step is only necessary if equipped with Electronic Steering Column Lock (ESCL).
Carry out the BCM to Electronic Steering Column Lock (ESCL) configuration/training procedure.
