419-10 Multifunction Electronic Modules 2016 Mustang

Removal and Installation Procedure revision date: 11/3/2015

Body Control Module (BCM)

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. NOTE: If the BCM did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair. This step is only necessary if the BCM is being replaced

Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions.

2. NOTE: The PAM is integral to the BCM. This step is only necessary if the BCM is being replaced.

Using a diagnostic scan tool, begin the PMI process for the PAM following the on-screen instructions.

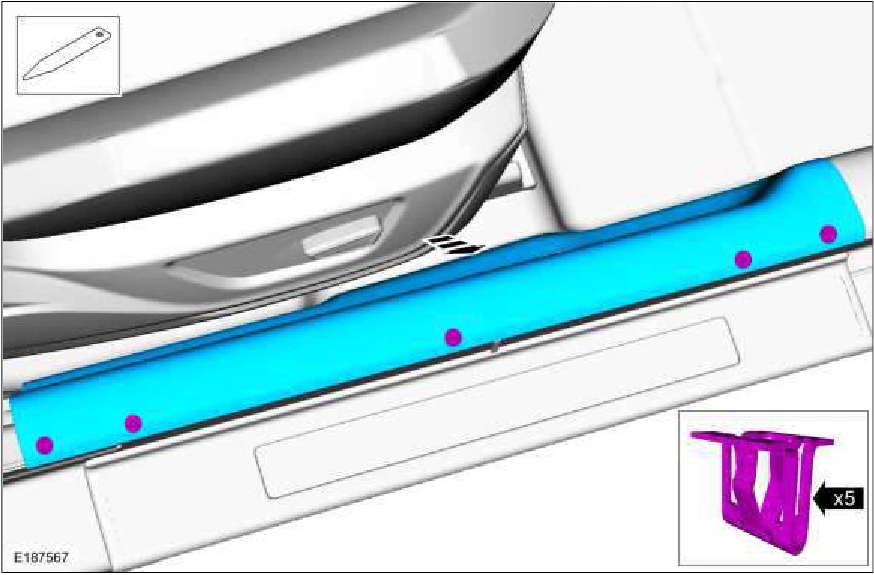

3. Release the clips and remove the RH scuff plate. Use the General Equipment: Interior Trim Remover

Body Control Module (BCM) — original illustration 1, reference 6209Original colors & callouts · Select to enlarge

4. Release the clips and remove the lower RH cowl trim panel.
