Fuel Pump Driver Module (FPDM)

303-04C Fuel Charging and Controls - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 2016 Mustang (308kW/418PS)

Procedure revision date:

Removal and Installation

04/23/2015

Removal

NOTE: The FPDM is located beneath the rear seat cushion on the LH side.

1. Remove the rear seat cushion. Refer to: Rear Seat Cushion (501-10B Rear Seats, Removal and Installation).

Step 2

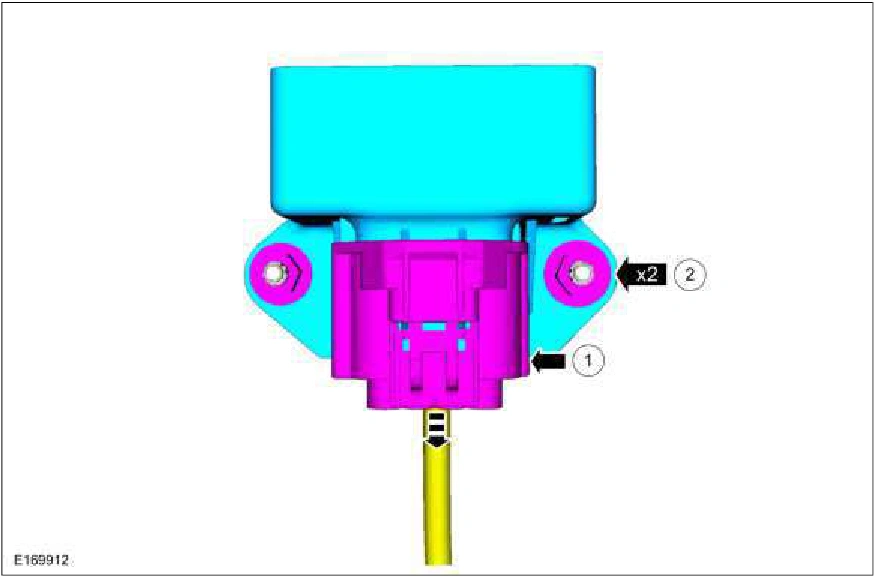

1. Disconnect the FPDM electrical connector.

2. Remove the FPDM retaining nuts and then remove the FPDM.

303-04C Fuel Charging and Controls - 5.0L — original illustration 1, reference 634Original colors & callouts · Select to enlarge

Installation

Step 1

1. Install the FPDM, then install and tighten the FPDM retaining nuts. Torque : 44 lb.in (5 Nm)

2. Connect the FPDM electrical connector.

Source reference 634
