303-04C Fuel Charging and Controls - 5.0L — 2016 workshop reference 637

303-04C Fuel Charging and Controls - 5.0L — original illustration 1, reference 637Original colors & callouts · Select to enlarge

5. Disconnect the fuel supply tube quick release coupling. Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).

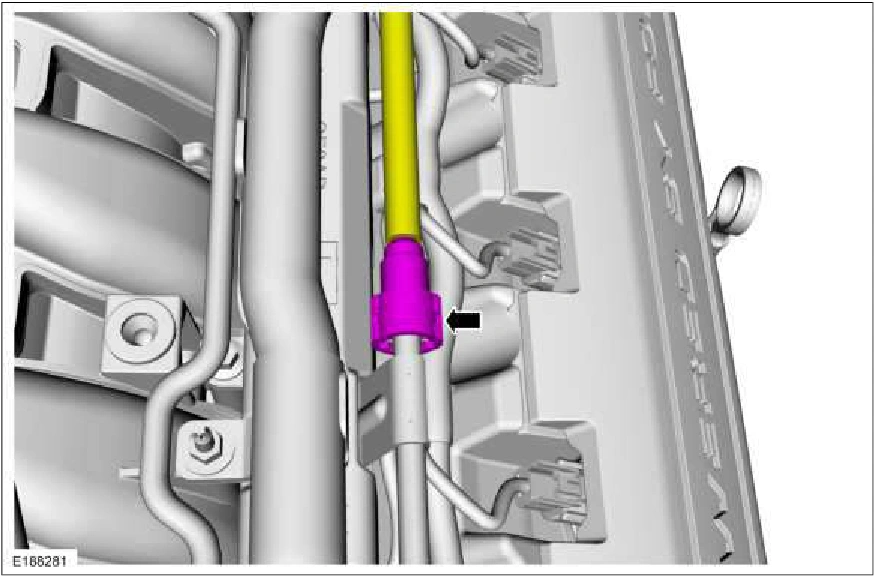

303-04C Fuel Charging and Controls - 5.0L — original illustration 2, reference 637Original colors & callouts · Select to enlarge

6. Position the heater hoses aside.

Source reference 637
