Fuel Rail

303-04C Fuel Charging and Controls - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 2016 Mustang (308kW/418PS)

Procedure revision date:

Removal and Installation

04/23/2015

Removal

1. Release the fuel system pressure. Refer to: Fuel System Pressure Release (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).

2. Disconnect the battery ground and positive cables. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

3. If equipped with a strut tower cross brace, detach the wiring harness retainer. Remove the nuts and the strut tower cross brace.

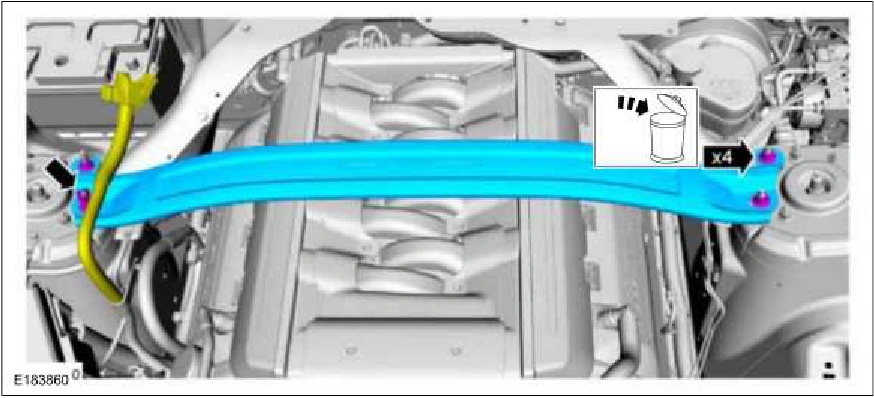

303-04C Fuel Charging and Controls - 5.0L — original illustration 1, reference 636Original colors & callouts · Select to enlarge

4. NOTE: The engine appearance cover rubber grommets may remain on the cover. If so, remove the grommets from the cover and install them on the intake manifold before installing the cover.

Remove the engine appearance cover.

Source reference 636
