303-04C Fuel Charging and Controls - 5.0L

303-04C Fuel Charging and Controls - 5.0L

2016 Mustang5.0LReference 640 / 6,619HTML edition
← Chapter contents
303-04C Fuel Charging and Controls - 5.0L — original illustration 1, reference 640Original colors & callouts · Select to enlarge

11. Remove the fuel rail retaining bolts and remove the fuel rail.

303-04C Fuel Charging and Controls - 5.0L — original illustration 2, reference 640Original colors & callouts · Select to enlarge

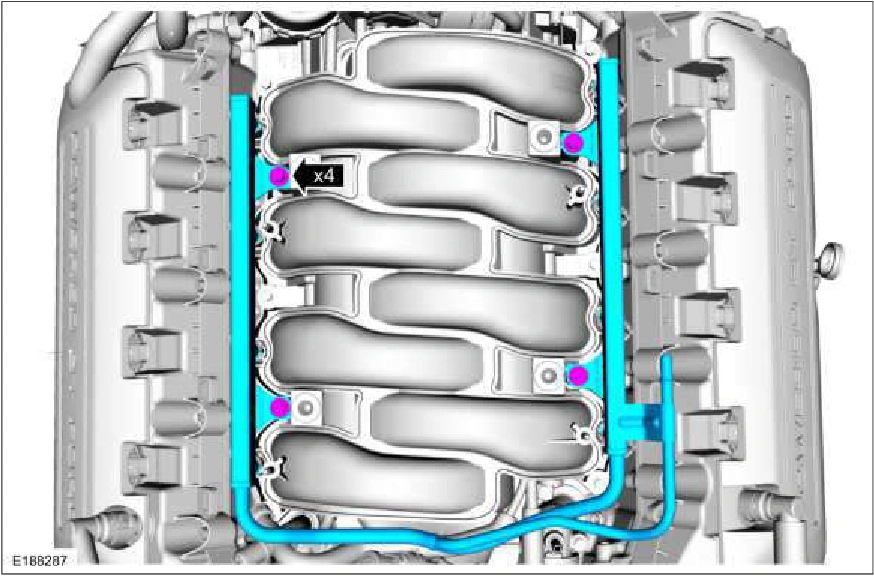

12. Remove the fuel injectors from the fuel rail.

Source reference 640
