303-04C Fuel Charging and Controls - 5.0L

2016 Mustang5.0LReference 641 / 6,619HTML edition

← Chapter contents

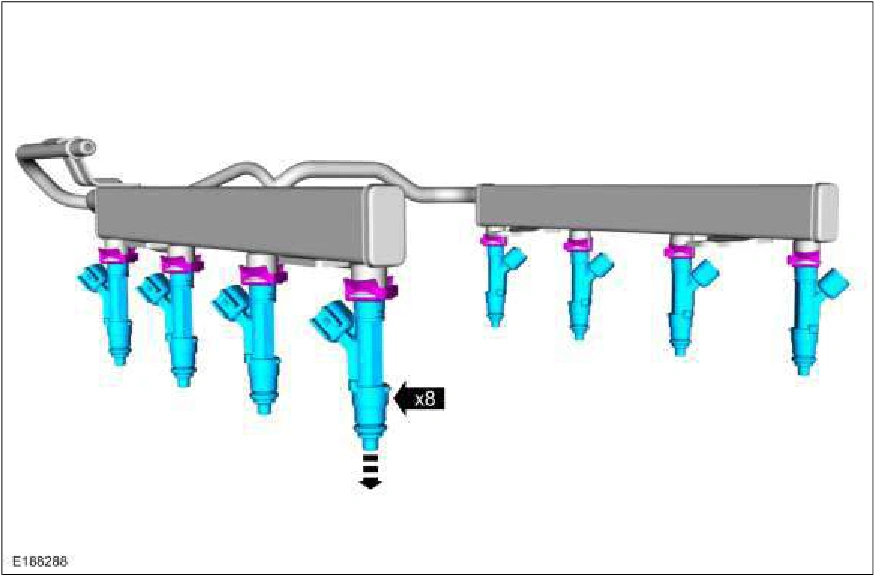

303-04C Fuel Charging and Controls - 5.0L — original illustration 1, reference 641Original colors & callouts · Select to enlarge

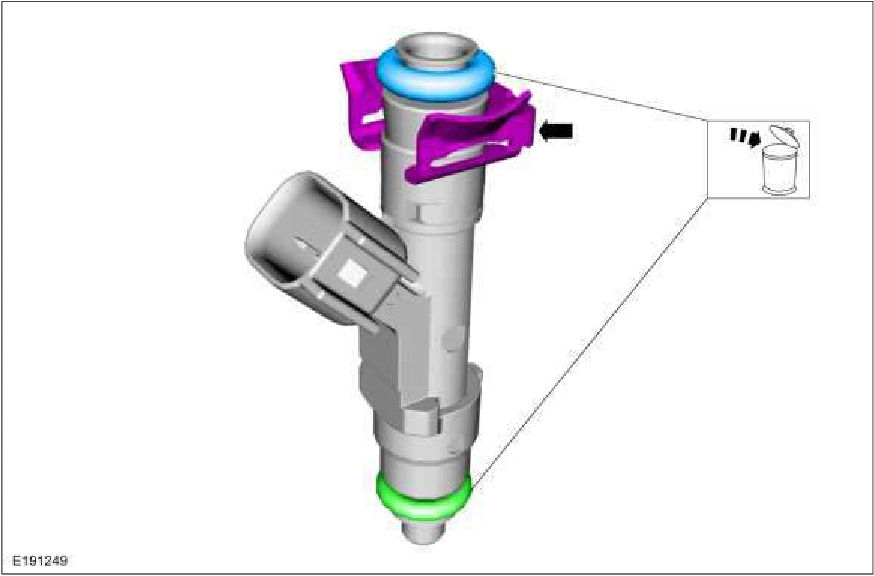

13. Remove and discard all of the fuel injector O-ring seals. Remove the fuel injector retaining clips.
