303-04C Fuel Charging and Controls - 5.0L

2016 Mustang5.0LReference 643 / 6,619HTML edition

← Chapter contents

Stage 2: 90°

303-04C Fuel Charging and Controls - 5.0L — original illustration 1, reference 643Original colors & callouts · Select to enlarge

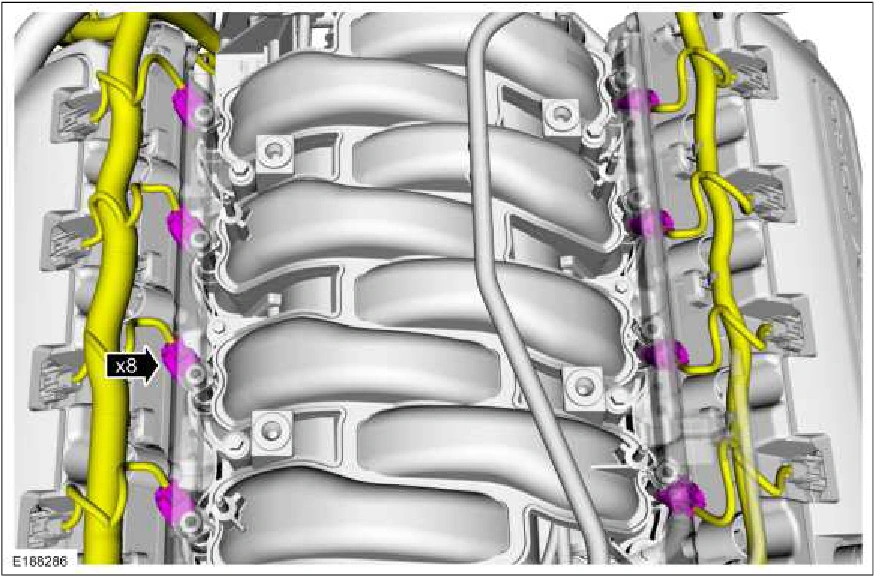

4. Connect the fuel injector electrical connectors.

303-04C Fuel Charging and Controls - 5.0L — original illustration 2, reference 643Original colors & callouts · Select to enlarge

5. Install the LH and RH fuel rail insulators.
