303-04C Fuel Charging and Controls - 5.0L — 2016 workshop reference 645

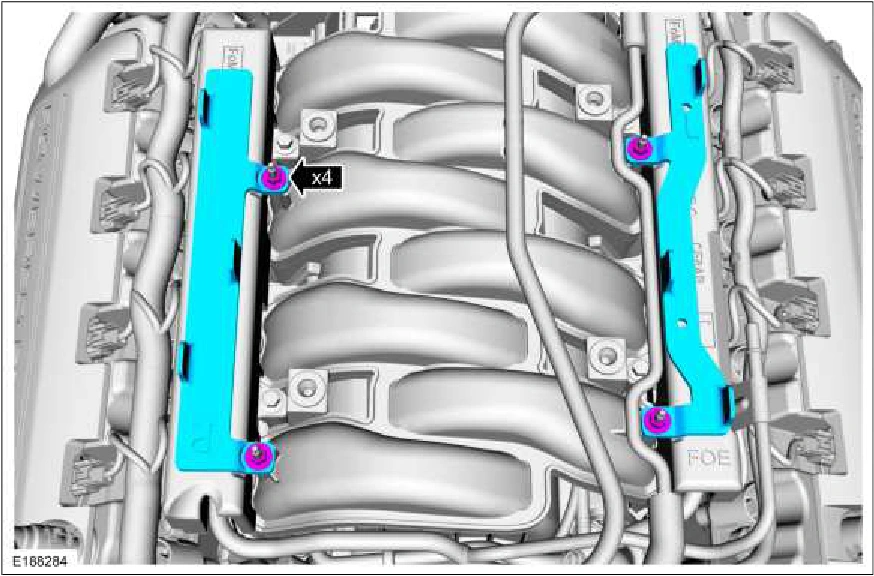

303-04C Fuel Charging and Controls - 5.0L — original illustration 1, reference 645Original colors & callouts · Select to enlarge

8. Install the heater hoses.

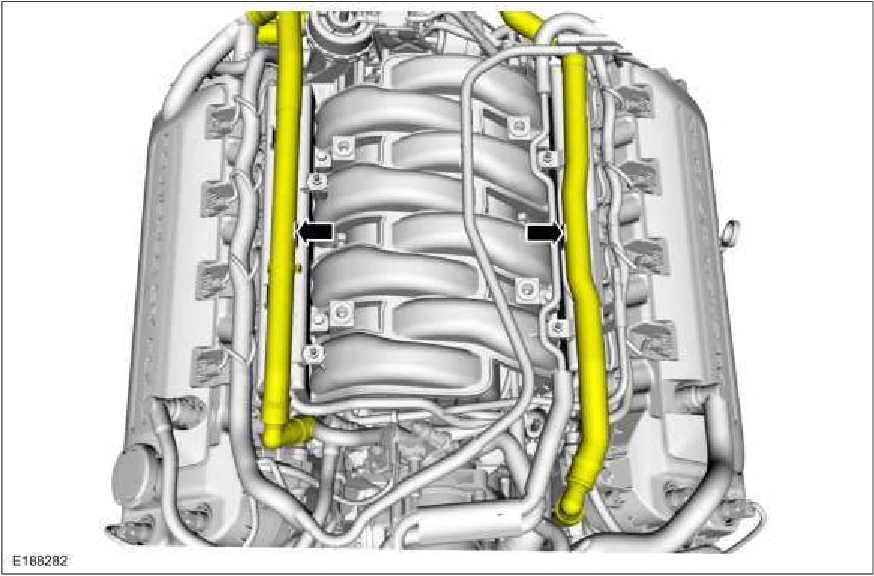

303-04C Fuel Charging and Controls - 5.0L — original illustration 2, reference 645Original colors & callouts · Select to enlarge

9. Connect the fuel supply tube quick release coupling. Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).
