Throttle Body

303-04C Fuel Charging and Controls - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 2016 Mustang (308kW/418PS)

Procedure revision date:

Removal and Installation

04/23/2015

Base Part Number: 9F991

Removal

1. Remove the engine appearance cover.

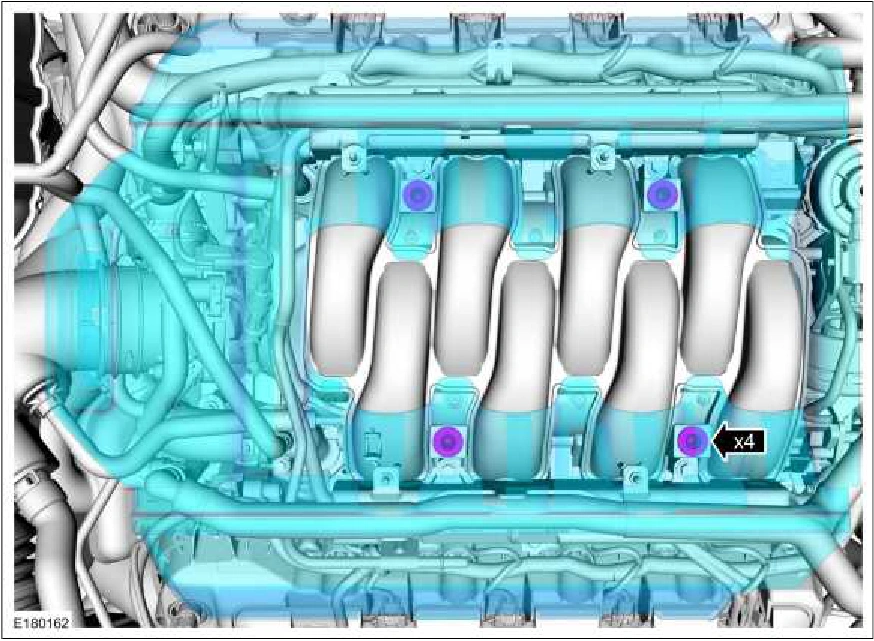

303-04C Fuel Charging and Controls - 5.0L — original illustration 1, reference 648Original colors & callouts · Select to enlarge

2. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe (303-12C Intake Air Distribution and Filtering - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

3. Disconnect the Throttle Body (TB) electrical connector. Remove the Throttle Body (TB) retaining bolts and then remove the Throttle Body (TB).

Source reference 648
