Installation

303-04C Fuel Charging and Controls - 5.0L — original illustration 1, reference 649Original colors & callouts · Select to enlarge

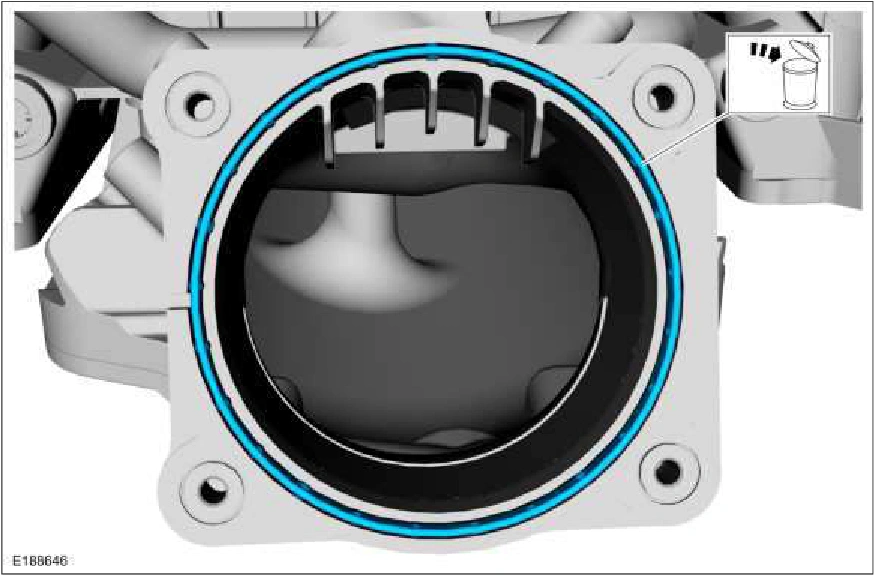

4. Remove and discard the Throttle Body (TB) gasket.

303-04C Fuel Charging and Controls - 5.0L — original illustration 2, reference 649Original colors & callouts · Select to enlarge

NOTICE: Make sure that the mating faces are clean and free of foreign material.

1. Install a new Throttle Body (TB) gasket.

Source reference 649
