303-04C Fuel Charging and Controls - 5.0L — 2016 workshop reference 650

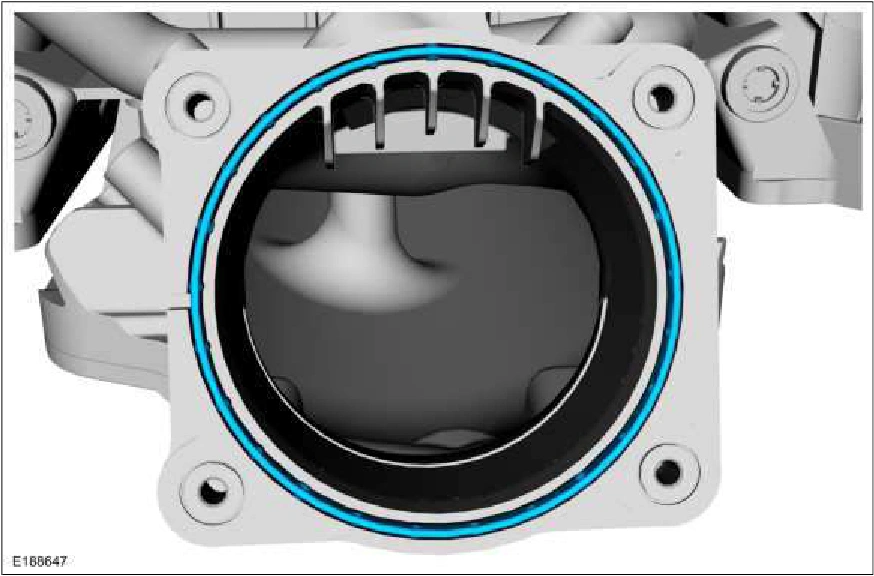

303-04C Fuel Charging and Controls - 5.0L — original illustration 1, reference 650Original colors & callouts · Select to enlarge

2. Install the Throttle Body (TB), then install and tighten the Throttle Body (TB) retaining bolts. Connect the Throttle Body (TB) electrical connector. Torque : Stage 1: 62 lb.in (7 Nm) Stage 2: 60°

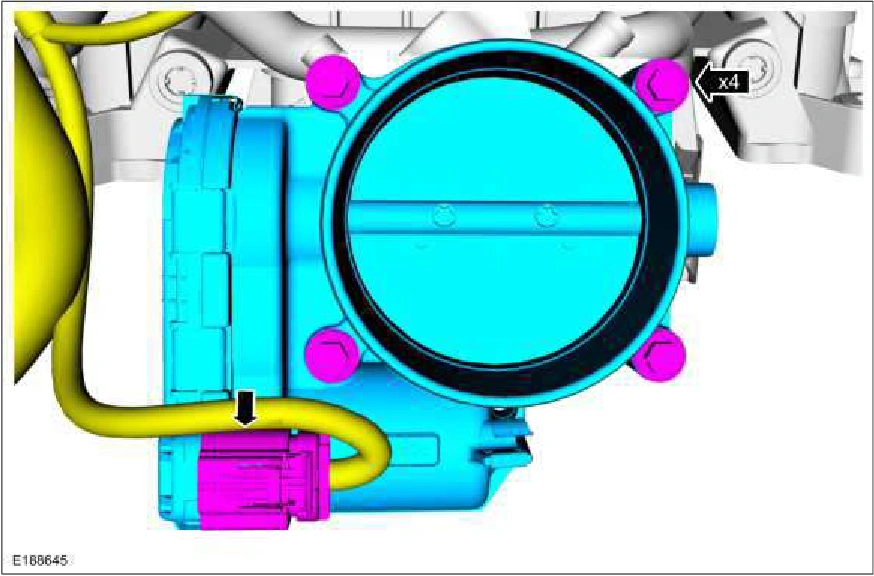

303-04C Fuel Charging and Controls - 5.0L — original illustration 2, reference 650Original colors & callouts · Select to enlarge

3. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe (303-12C Intake Air Distribution and Filtering - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

4. The engine appearance cover rubber grommets may remain on the cover. If so, remove the grommets from the cover and install them on the intake manifold before installing the cover. Install the engine appearance cover.
