303-04C Fuel Charging and Controls - 5.0L — 2016 workshop reference 646

303-04C Fuel Charging and Controls - 5.0L — original illustration 1, reference 646Original colors & callouts · Select to enlarge

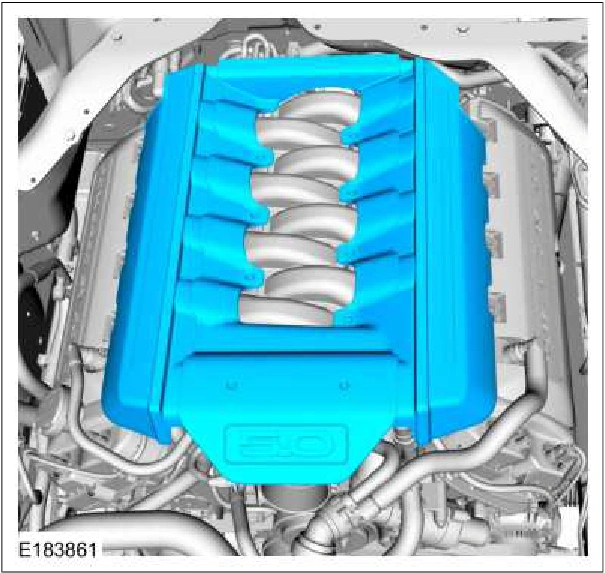

10. NOTE: The engine appearance cover rubber grommets may remain on the cover. If so, remove the grommets from the cover and install them on the intake manifold before installing the cover.

Install the engine appearance cover.

303-04C Fuel Charging and Controls - 5.0L — original illustration 2, reference 646Original colors & callouts · Select to enlarge

11. If equipped, install the strut tower cross brace and nuts.

Torque : 41 lb.ft (55 Nm) Attach the wiring harness retainer.

Source reference 646
