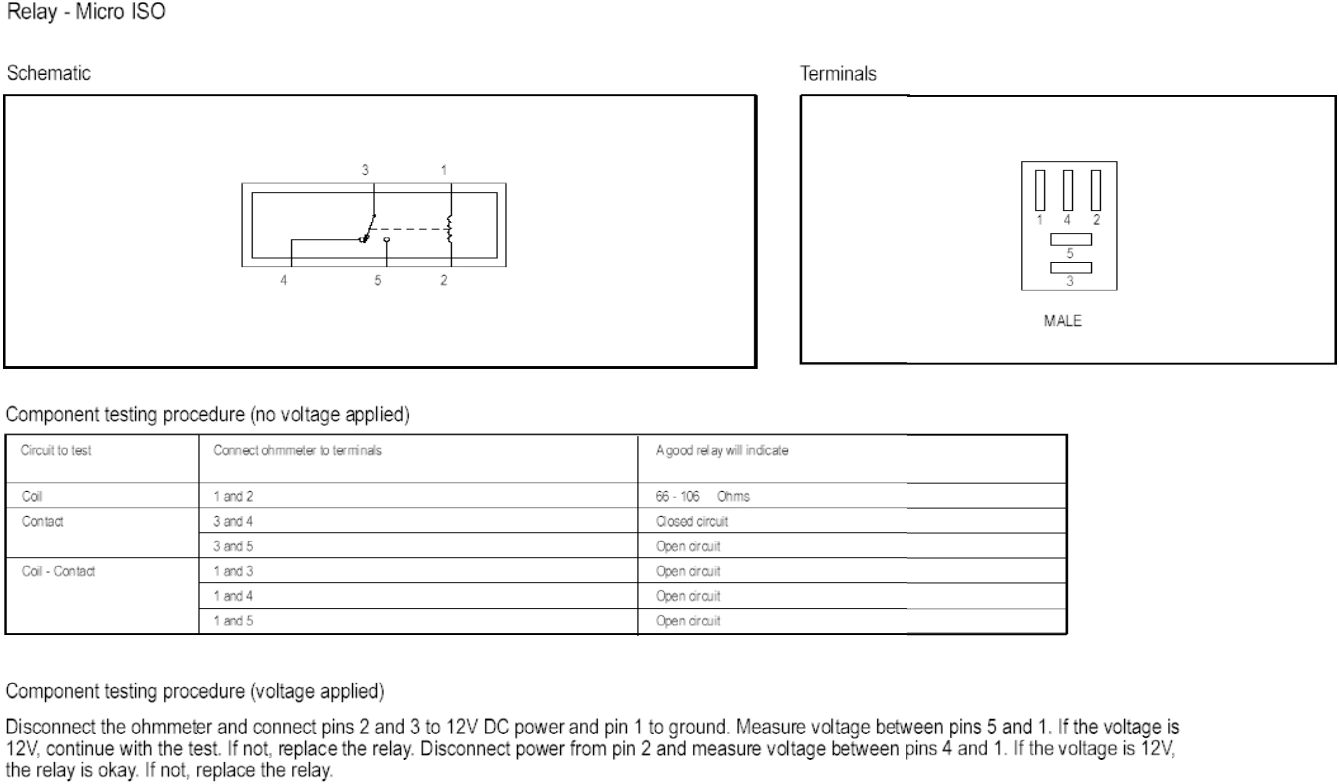

Relay - Micro ISO Schematic Terminals Component testing procedure (no voltage applied) Agood rd ay will indicat Component testing procedure (voltage applied) Disconnect the chmmeter and connect pins 2 and 3 to 12V DC power and pin 1 fo ground. Measure voltage between pins 5 and 1. If the voltage is 12V, continue with the test. If not, replace the relay. Disconnect power from pin 2 and measure voltage between pins 4 and 1. If the voltage is 12V, the relay is okay. If not, replace the relay.
