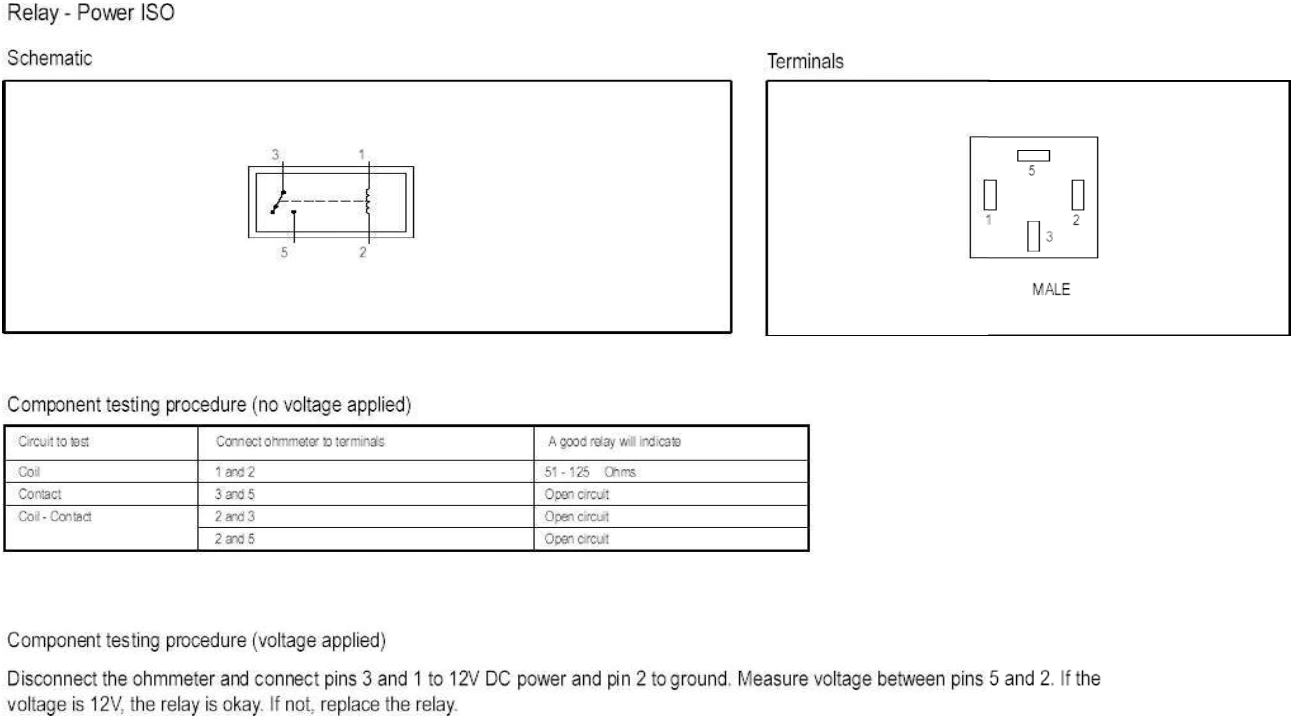

Relay - Power ISO Schematic Terminals Component testing procedure (no voltage applied) Component testing procedure (voltage applied) Cisconnect the chmmeter and connect pins 3 and 1 to 12¥ DC power and pin 2 to ground. Measure voltage between pins 5 and 2. If the voltage is 12V, the relay is okay. If not. replace the relay
Source reference 6556
