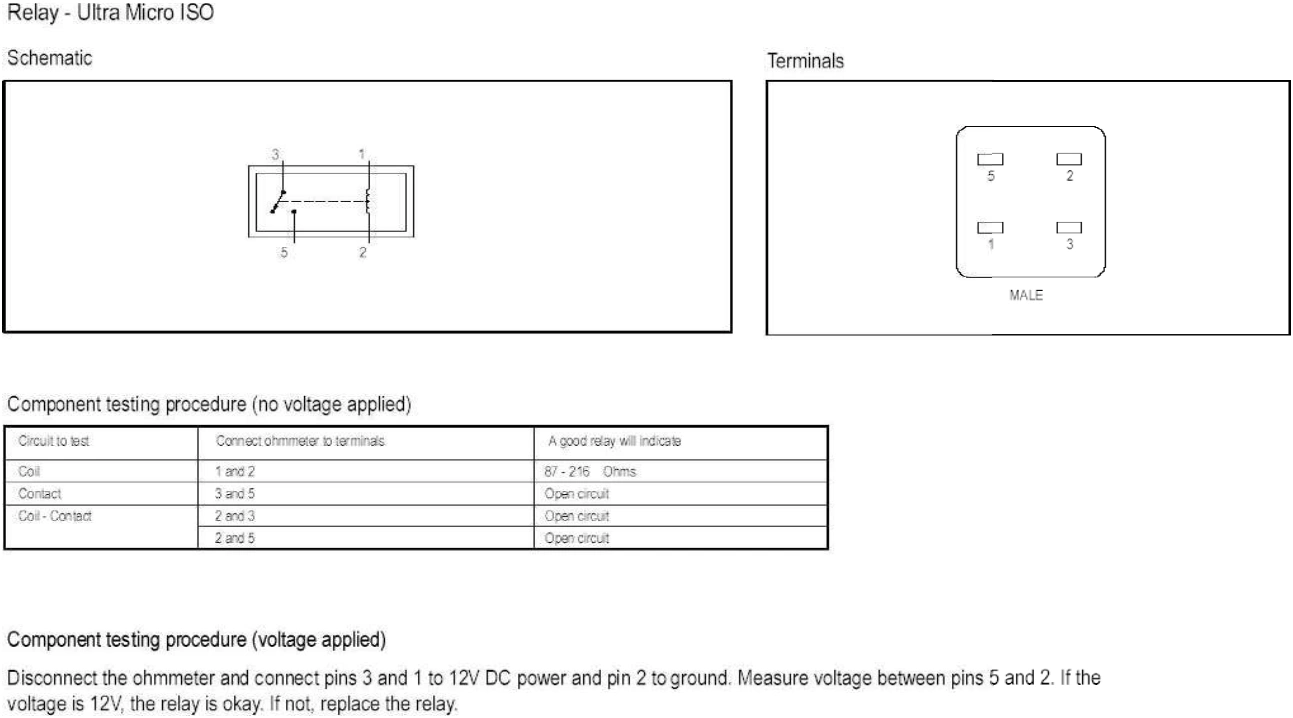

Relay - Ultra Micro ISO Schematic Terminals Component testing procedure (no voltage applied) Component testing procedure (voltage applied) Disconnect the chmmeter and connect pins 3 and 1 to 12V DC power and pin 2 to ground. Measure voltage between pins 5 and 2. If the voltage is 12Y, the relay is okay. If not, replace the relay.
Source reference 6555
