303-05C Accessory Drive - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 2016 Mustang (308kW/418PS)

Procedure revision date:

Removal and Installation

01/8/2015

Accessory Drive Belt

Base Part Number: 8620

Removal

1. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe (303-12C Intake Air Distribution and Filtering - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

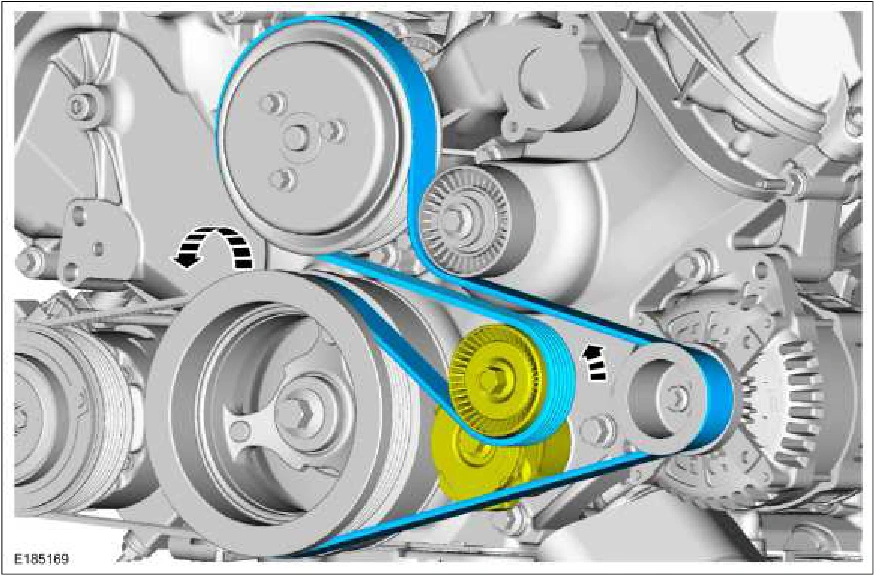

2. Rotate the accessory drive belt tensioner counter clockwise and remove the accessory drive belt.

303-05C Accessory Drive - 5.0L — original illustration 1, reference 659Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. After installation, make sure the accessory drive belt is correctly seated on all pulleys.
