Accessory Drive Belt Tensioner

303-05C Accessory Drive - 5.0L

2016 Mustang5.0LReference 661 / 6,619HTML edition
← Chapter contents

303-05C Accessory Drive - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 2016 Mustang (308kW/418PS)

Procedure revision date:

Removal and Installation

01/8/2015

Accessory Drive Belt Tensioner

Base Part Number: 6B209

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe (303-12C Intake Air Distribution and Filtering - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

2. Rotate the accessory drive belt tensioner counter clockwise and position aside the accessory drive belt.

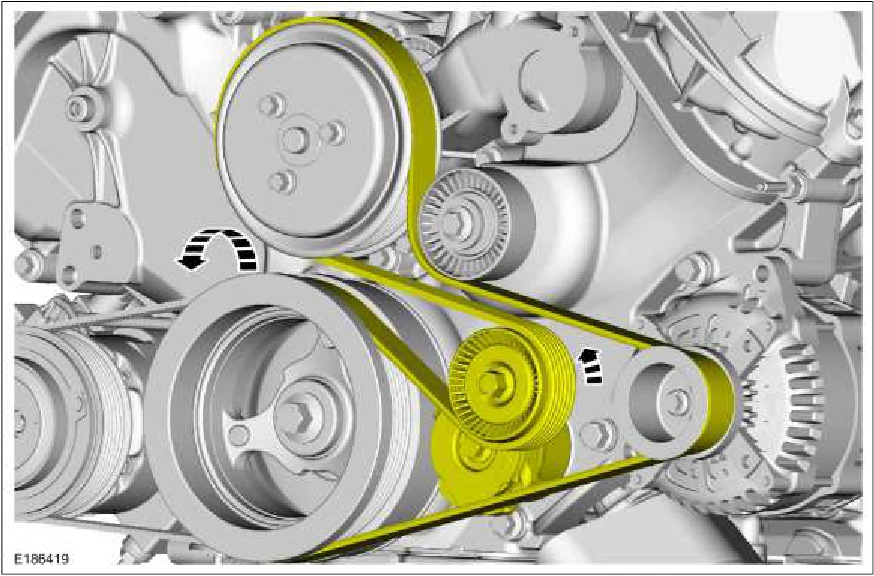

303-05C Accessory Drive - 5.0L — original illustration 1, reference 661Original colors & callouts · Select to enlarge

3. Remove the bolt and the accessory drive belt tensioner. Torque : 35 lb.ft (48 Nm)

Source reference 661
