Installation

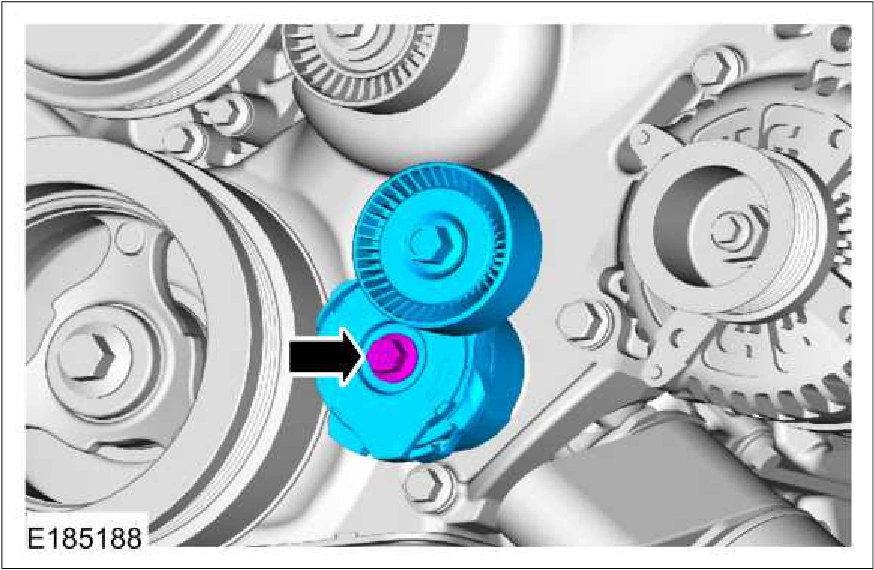

303-05C Accessory Drive - 5.0L — original illustration 1, reference 662Original colors & callouts · Select to enlarge

1. To install, reverse the removal procedure.

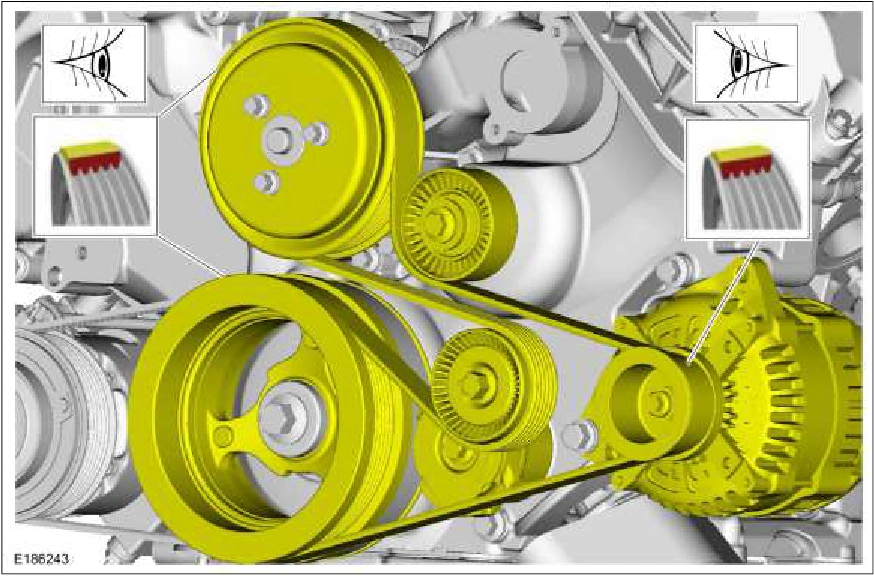

2. After installation, make sure the accessory drive belt is correctly seated on all pulleys.

303-05C Accessory Drive - 5.0L — original illustration 2, reference 662Original colors & callouts · Select to enlarge
