303-05C Accessory Drive - 5.0L — 2016 workshop reference 665

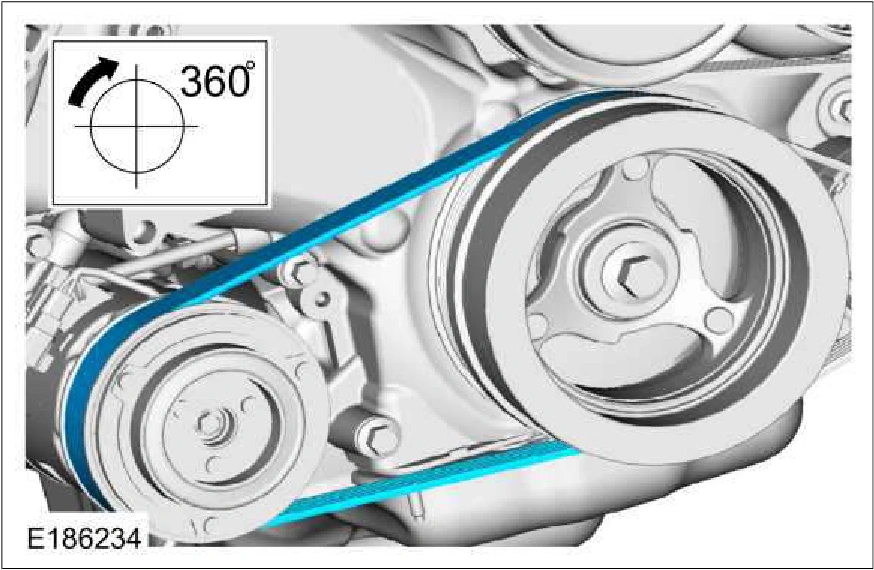

303-05C Accessory Drive - 5.0L — original illustration 1, reference 665Original colors & callouts · Select to enlarge

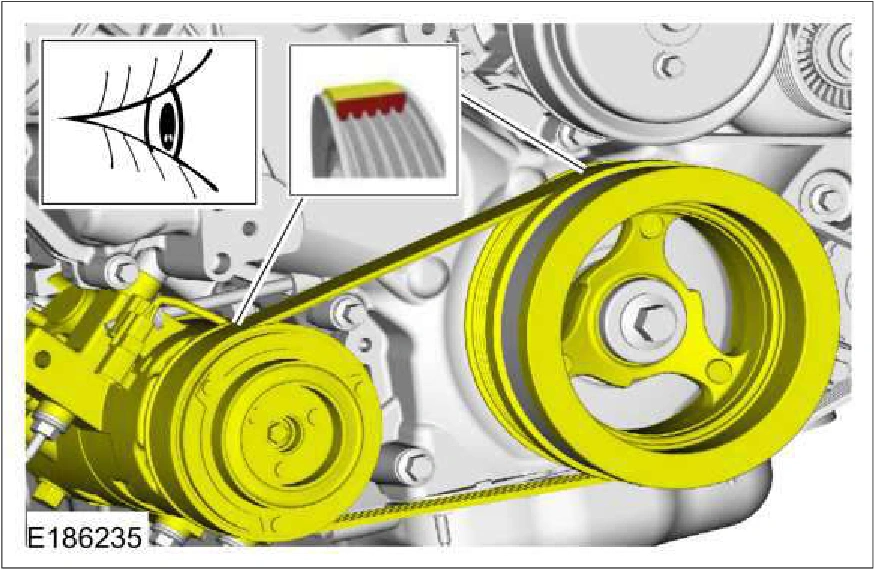

5. After installation, make sure the accessory drive belt is correctly seated on all pulleys.

303-05C Accessory Drive - 5.0L — original illustration 2, reference 665Original colors & callouts · Select to enlarge

6. Install the accessory drive belt. Refer to: Accessory Drive Belt (303-05C Accessory Drive - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

7. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe (303-12C Intake Air Distribution and Filtering - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).
