compressor belt and engine can occur.

width of 3 mm (0.12 in) through the crankshaft pulley spokes, up and over the A/C compressor belt and tighten the cable tie. Use the General Equipment: Cable Ties

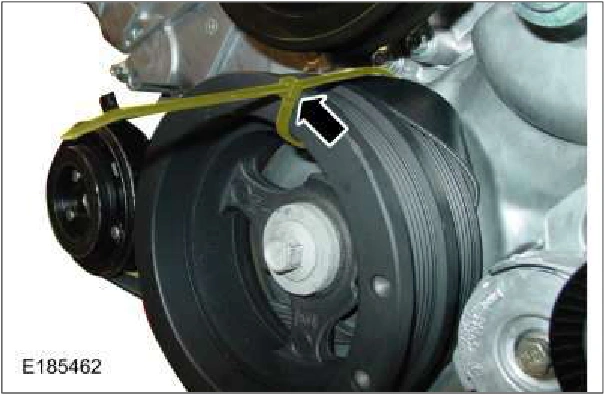

303-05C Accessory Drive - 5.0L — original illustration 1, reference 664Original colors & callouts · Select to enlarge

3. NOTICE: The A/C compressor belt must be above the oil pan flange or damage to the A/C

With the A/C compressor belt positioned above the oil pan flange, rotate the crankshaft by hand clockwise 180°.

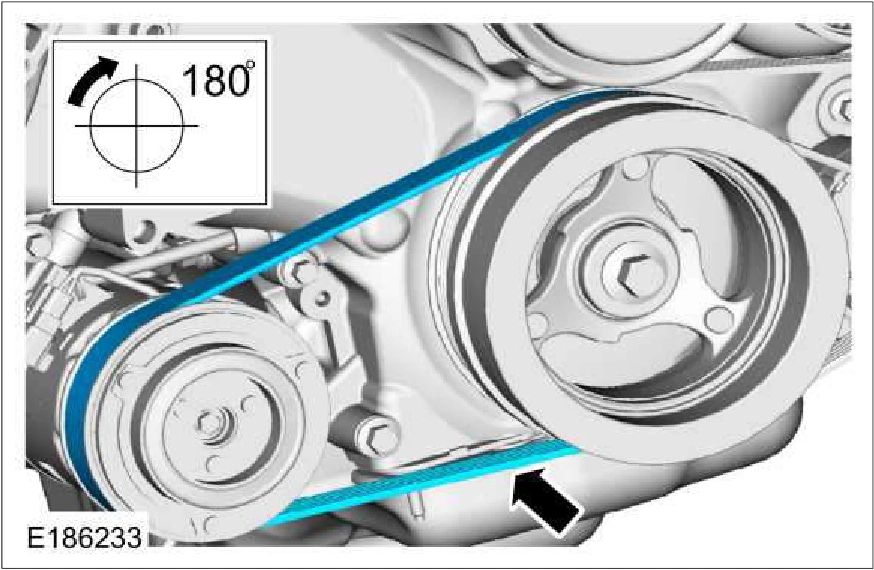

303-05C Accessory Drive - 5.0L — original illustration 2, reference 664Original colors & callouts · Select to enlarge

4. Remove the cable tie and rotate the crankshaft clockwise by hand 360° to verify the A/C compressor belt has correctly seated onto the crankshaft and A/C compressor pulleys.

Source reference 664
