303-06C Starting System - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 2016 Mustang (308kW/418PS)

Procedure revision date:

Description and Operation

08/1/2014

Starting System - System Operation and Component Description

System Operation

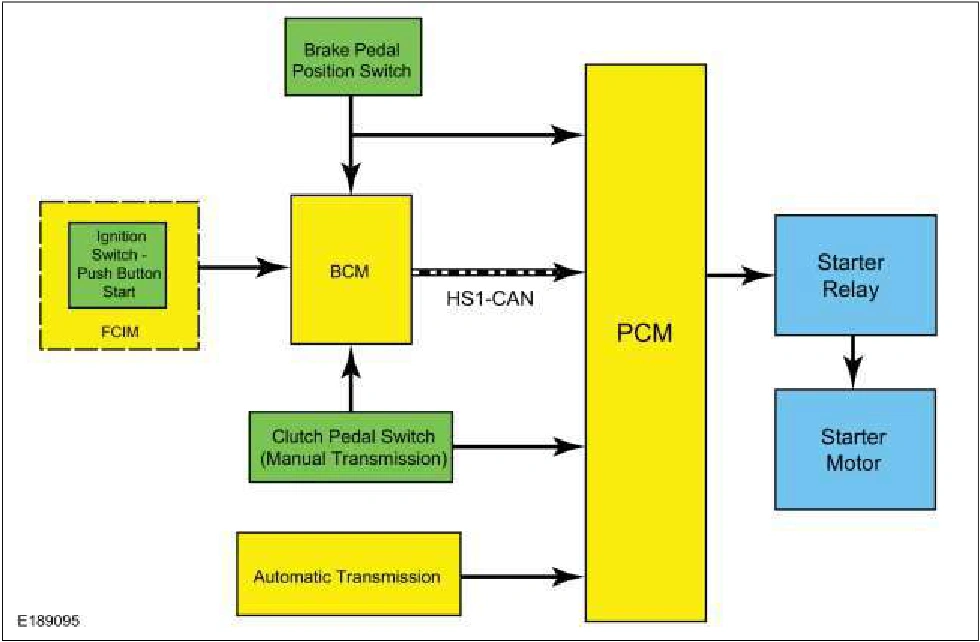

System Diagram - with Push Button Start

303-06C Starting System - 5.0L — original illustration 1, reference 668Original colors & callouts · Select to enlarge

Network Message Chart

Module Network Input Messages Powertrain Control Module (PCM)

Broadcast Message	Originating Module	Message Purpose
Crank request	BCM	Provides the PCM with indication that the driver has commanded the engine to crank.
Power mode	BCM	Provides the PCM with ignition mode.
Ignition status	BCM	Provides the PCM with ignition mode.

Module Network Input Messages Body Control Module (BCM)

Broadcast Message	Originating Module	Message Purpose

Intelligent access RFA module The response from the BCM request for the RFA module ID. If the RFA

Source reference 668
