303-13C Evaporative Emissions - 5.0L — 2016 workshop reference 718

303-13C Evaporative Emissions - 5.0L — original illustration 1, reference 718Original colors & callouts · Select to enlarge

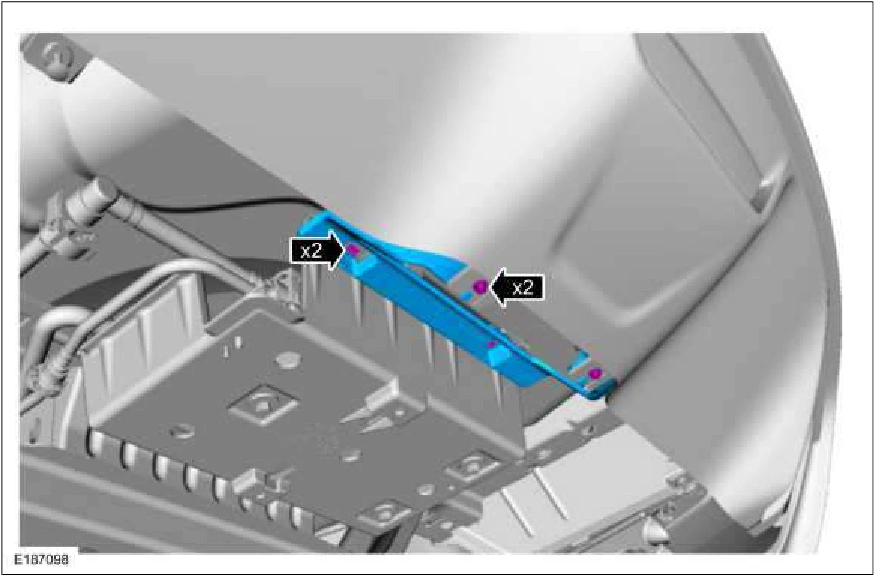

5. Remove the bolts. Torque : 62 lb.in (7 Nm)

303-13C Evaporative Emissions - 5.0L — original illustration 2, reference 718Original colors & callouts · Select to enlarge

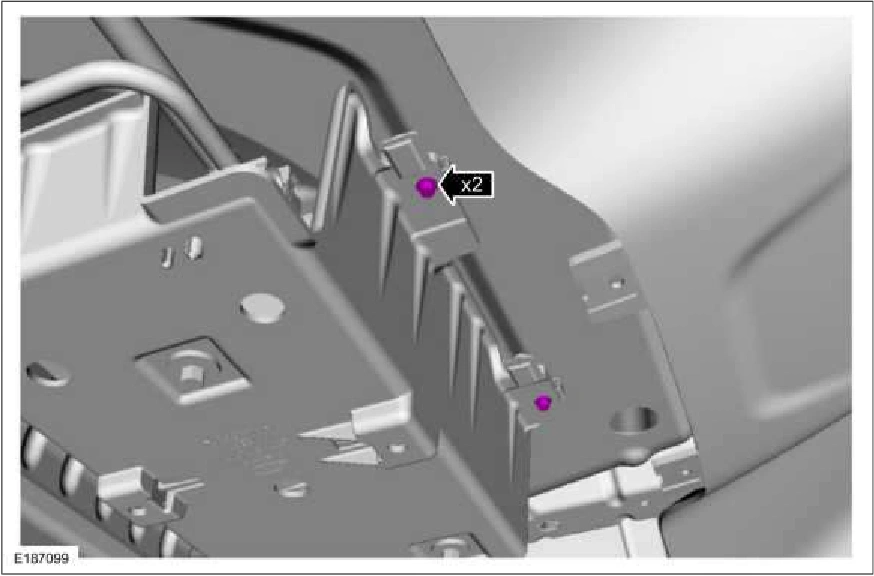

6. Remove the nuts and lower the EVAP canister. Torque : 62 lb.in (7 Nm)
